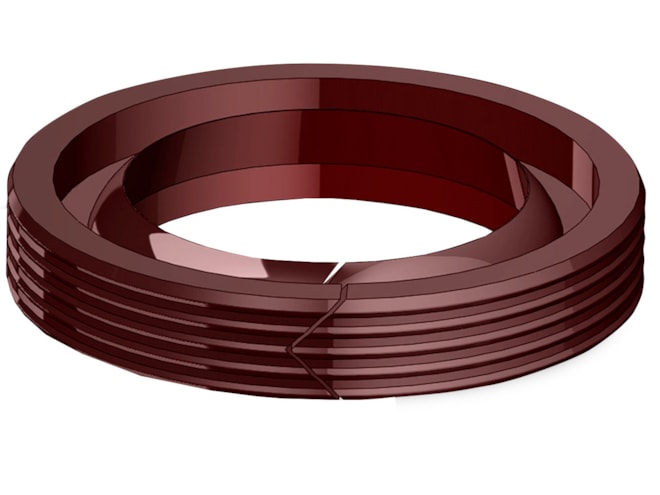

Chesterton 24K Slow Rotary Seal

Rotary seal for slow rotating applications exposed to large shaft runout .

Call for pricing
Part Number
  • 24K
Highlights...

Features

  • AWC704 (FKM)
    • -20 to 400°F (-30 to 200°C)
    • 100 psi (0.7mpa)
    • 200fps (100 msec)
  • AWC800 (EU)
    • -4 to 185°F (-20 to 85°C)
    • 100 psi (0.7mpa)
    • 50fps (0.25 msec)
  • AWC825 (EU)
    • -40 to 185°F (-40 to 85°C)
    • 100 psi (0.7mpa)
    • 50fps (0.25 msec)
  • AWC830 (EU)
    • -30 to 175°F (-35 to 75°C)
    • 100 psi (0.7mpa)
    • 100fps (0.50 msec)
  • AWC860 (EU)
    • -60 to 250°F (-50 to 120°C)
    • 100 psi (0.7mpa)
    • 150fps (0.75 msec)

The Chesterton 24K Slow Rotary Seal is well suited for low-speed dynamic rotary seal applications that are exposed to large shaft runout. It provides sealing and protective solutions for heavy-duty rotating equipment, even in severe application conditions. This prolongs bearing and equipment service life.

The flexible, dynamic lip of the 24K creates a positive seal and considerable compensates for shaft runout. This seal improves reliability of old and worn equipment. Combined with high performance polyurethane it minimizes frictional drag on the seal.

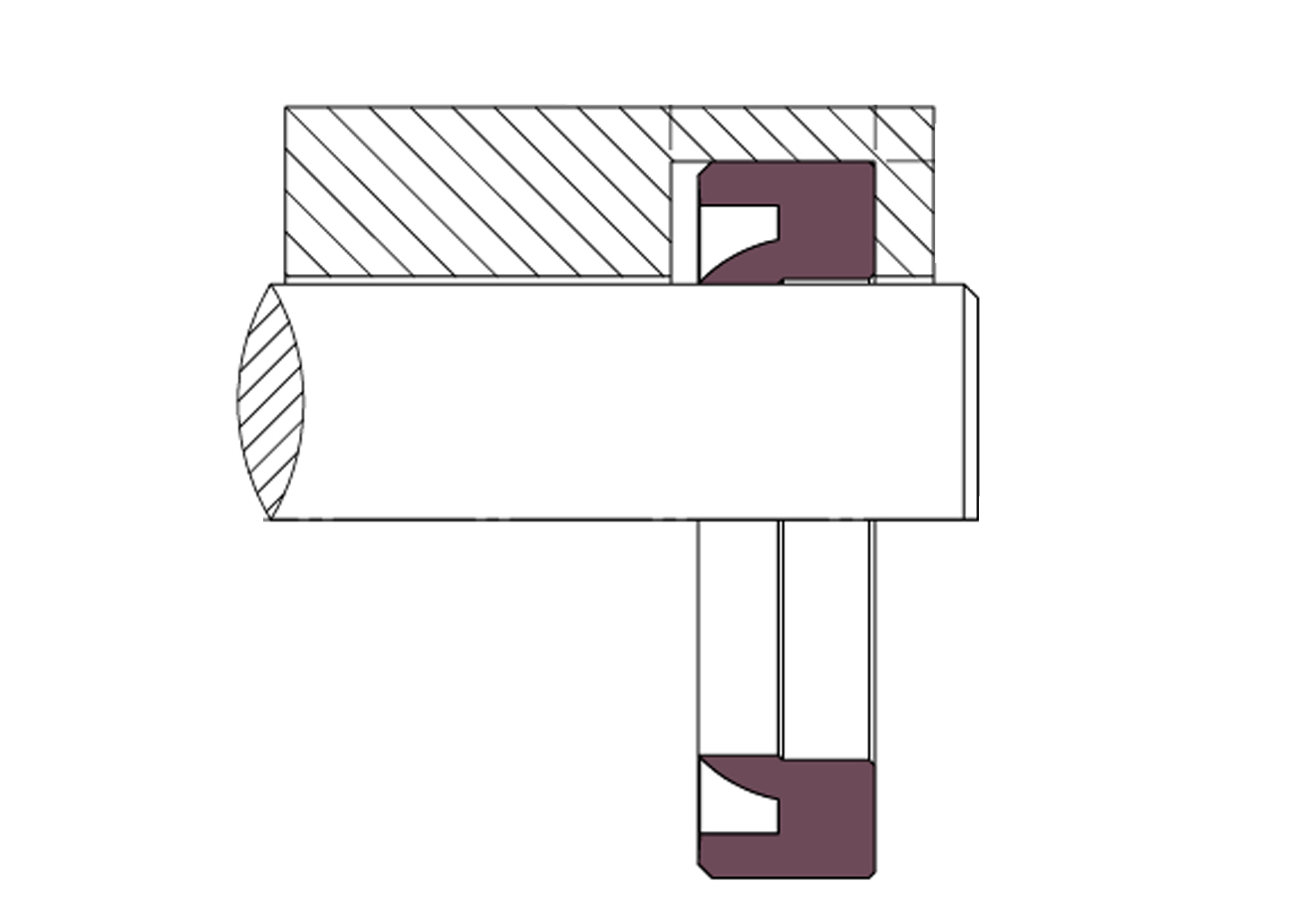

The robust, static seal design provides a tight seal in the seal cavity and allows for installation either in tandem or back to back configurations. This allows for the flexibility of varying seal systems according to hardware arrangement, operating conditions, and equipment demands. Additionally it provides protection against seal rotation with the shaft. It's design for simplified installation minimizes stretching, bunching, and twisting, which reduces the risk of improper installation.
