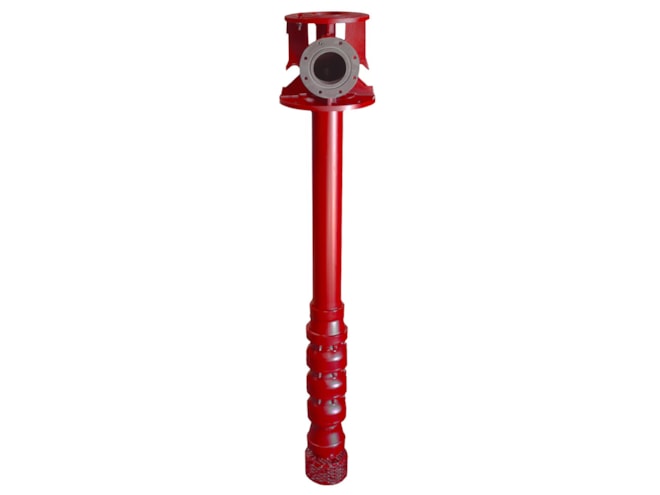

American-Marsh 480 Series Vertical Turbine Pump
30000 GPM max flow, 1,000ft max head, heavy-duty casings built to withstand high pressures and harsh operating conditions.
Images may not represent all possible configurations of this product.
Overview
Features
- 5 to 42in bowl diameters
- Temperature up to 180°F
- Modular design enameled bowls to 16"
- High-efficiency impellers
- Available in enclosed or semi-open designs
- Enclosed lineshaft assemblies
- Materials of Construction:
- Cast Iron
- Bronze or Stainless Steel fitted
- Optional metallurgies available
Description
The American-Marsh 480 Series Vertical Turbine Pump is engineered for reliable, high-efficiency performance across a wide range of commercial, industrial, mining, and municipal applications. Designed to handle challenging environments and demanding duty cycles, The 480 Series is available in multiple configurations, including short set, deep set, submersible, mixed flow, and propeller types to meet specific system requirements.
Applications:
- Steel Mill
- Power Plant
- Commercial
- Municipal
- Mining
- Irrigation
- Water Well
