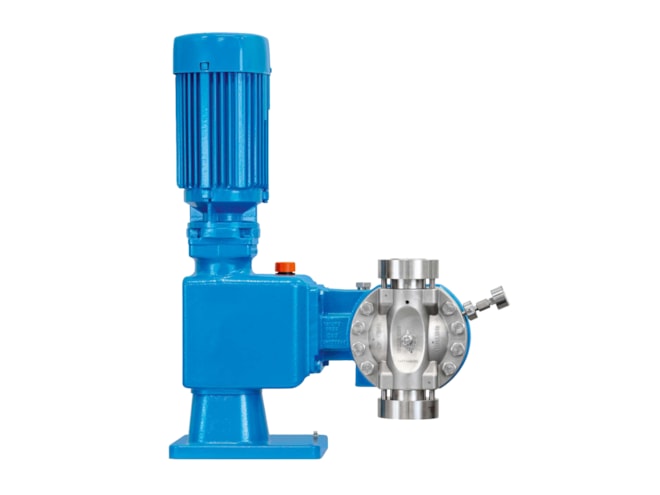

Lewa Ecosmart Chemical Metering Pump

Positive displacement pump; easily operated and maintained due to shared oil bath for drive unit and pump head.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,850.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 100 to 172 SPM stroke
  • 6 to 28mm plunger size
  • 0.5 to 21.4 GPH (1.8 to 81 LPH) flow rate
  • 175 to 1160 MAWP
  • Up to 80bar discharge pressure
  • -22 to 248°F (-30 to 120°C) temperature range
  • Up to 100,000 mPa viscosity
  • M9-PTFE sandwich double diaphragm
  • 316L or PVC pump head material
  • Simplex design
  • NPT connection type
  • Single ball check valve
  • Dry run safe
  • Integrated, individually adjustable pressure relief valve

The Lewa Ecosmart Chemical Metering Pump features large safety reserves, especially during the startup, and diaphragm pump heads with a PTFE sandwich diaphragm for maximum operational reliability. The patented LEWA DPS technology also enables a suction capacity that is globally unique in the field of hydraulically actuated diaphragm pumps. The pump is suitable for vacuum extraction and slurry applications, and is designed to retain its reliable start-up even under extreme conditions.
