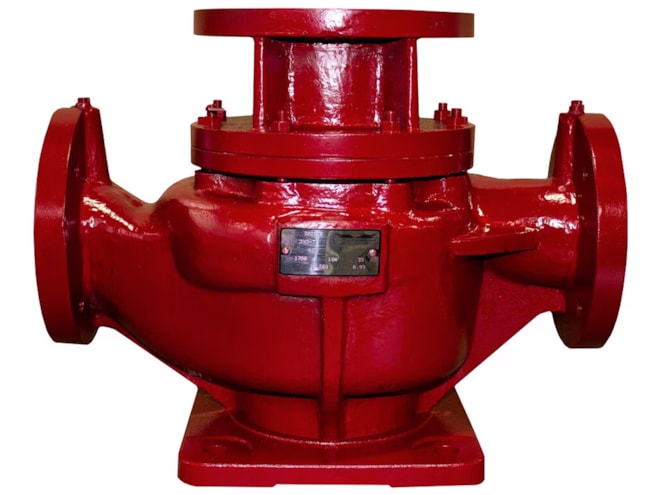

American-Marsh 310 Series REI Inline End Suction Pump

9000 GPM max flow, 450ft max head, general purpose pump used in commercial, industrial and municipal applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Discharge sizes: 2 to 12in
  • Temperature up to 180°F
  • Back pull-out design
  • Replaceable case wear rings
  • Internal plan 1 seal flush
  • CL 250 cast flanges drilled to CL 125
  • Centerline discharge
  • Integral feet on casing
  • Suction and discharge flanges drilled, tapped for gauges
  • Utilizes standard C-face T-frame motors
  • Materials of Construction:
    • Cast Iron
    • Stainless Steel fitted
    • 810 Component seal

The American-Marsh 310 Series REI Inline End Suction Pump is a general purpose pump that is used in commercial, industrial and municipal applications. The 310 Series REI features back pull out impellers, inline suction and discharge, casted integral base on all casings with heavy casing thickness, impellers with back pump out vanes and oversized shafts to provide the end user with a superior, reliable product.

Applications:

  • Agriculture and Irrigation
  • Commercial
  • Industrial
  • Municipal
  • Circulation
  • Booster
  • HVAC
  • Mining
