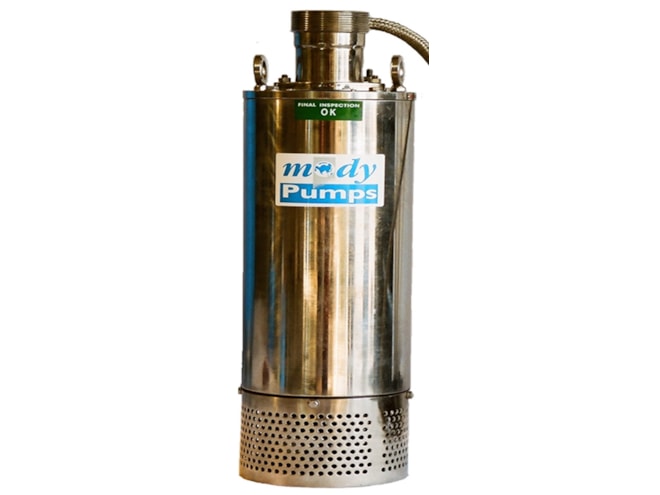

Mody Pumps M Series 3in Stainless Steel Electric Submersible Drainage Pump

Portable all stainless steel submersible pumps for corrosive and abrasive applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $14,262.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 3 to 11 pH Range
  • 3 or 5 HP motor
  • 3in discharge size
  • 75 ft maximum head
  • 400 gpm
  • 3 phase
  • 316 stainless steel and hi-chrome alloy impellers available for sea water and corrosive applications.
  • 3 ft stainless steel strain relief sheath over 50 ft cable included standard.
  • Impeller material nitride hardened 410 stainless steel standard.

The Mody Pumps M Series 3in Stainless Steel Electric Submersible Drainage Pump comprises of dewatering pumps constructed from high-grade stainless steel for superior performance in corrosive and abrasive environments. Their centerline discharge design makes them ideal for well casings and other space-constrained installations. Engineered to handle contaminated fluids typically found in landfills, nuclear power plants, mines, and pulp and paper facilities, these pumps feature IP68-rated motors with NEMA Class H insulation, ensuring reliable, continuous-duty operation.

This product can be used in the following applications:
