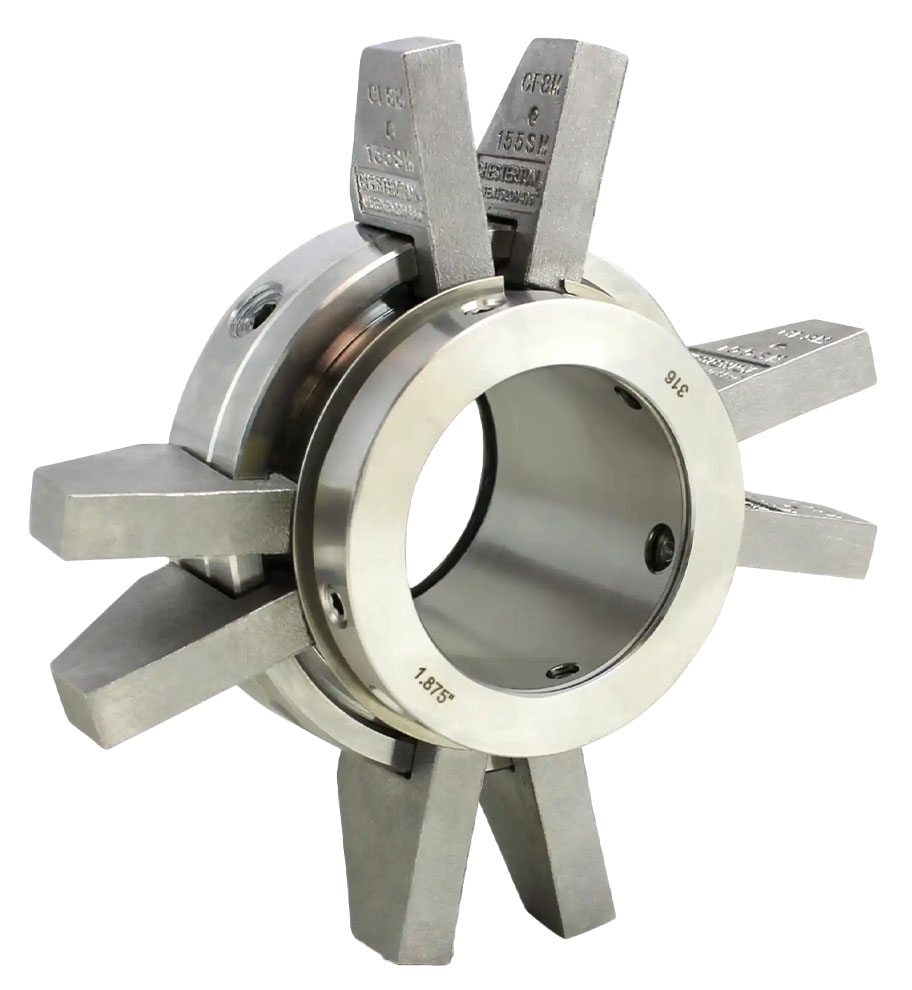

Chesterton 155 Standard Single Cartridge Mechanical Seal

1 to 4.75in / 25 to 120mm shaft sizes, single cartridge design for plant-wide flexibility and ease-of-use, oversized seal chamber option available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual

Effective April 15th, 2025 Chesterton has added a 3% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

Highlights...

Features

  • Standard and oversized seal chamber models available
  • Shaft sizes:
    • 1in to 4.75in (Standard Model), 1.375in to 2.625in (OS Chamber Model)
    • 25mm to 120mm (Standard Model Only)
  • -67 to 570°F (-55 to 300°C) operating temperature
  • 28in (711mm) Hg Vacuum to 600psig (40barg)
  • Face Materials:
    • Carbon Graphite
    • Silicon Carbide
    • Tungsten Carbide
    • Duplex Carbide
  • Elastomers:
    • Tetrafluoroethylene-Propylene (FEPM)
    • ChemLast 550 (FFKM)
    • Fluorocarbon (FKM)
  • Up to 5000 FPM operating speed
  • 316 Stainless Steel / EN 1.4401 metal parts
  • Alloy C-276/EN 2.4819 springs
  • ISO-3069C, ASME B73.1, ASME B73.2, NSF61

The Chesterton 155 Standard Single Cartridge Mechanical Seal is designed for plant-wide flexibility and ease-of-use. Available in standard and oversize seal chamber models, shaft sizes from 1in to 4.75in/25mm to 120mm (OS Chamber Model: 1.375in to 2.625in only), and multiple face material and elastomer material combinations.
