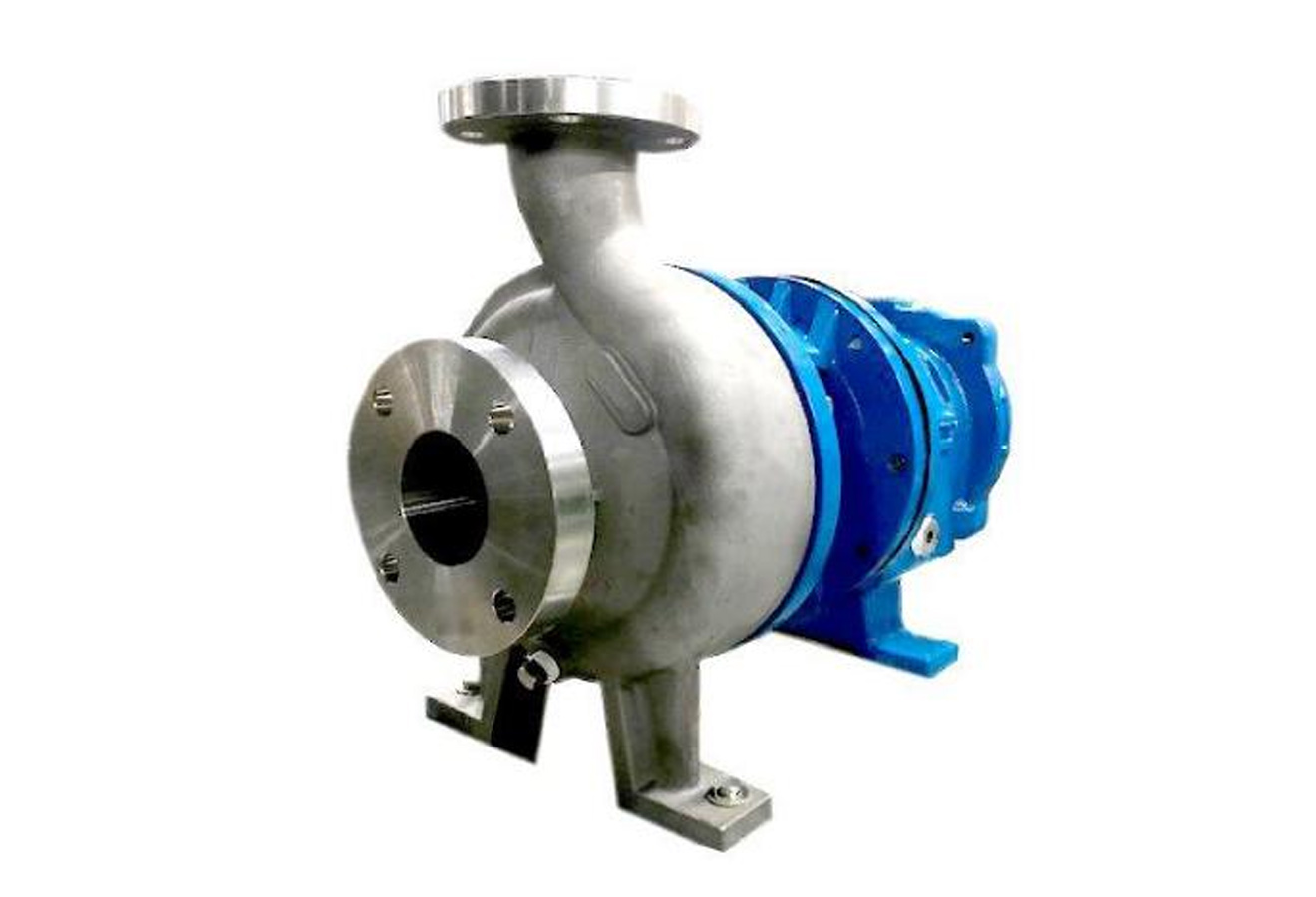

Magnatex Pumps 3596 Series ANSI Pump

Process pump built to ANSI/ASME B73.1 standard.

Select your options below…

Motor purchased separately

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • -100 to 700°F (-73 to 370°C) liquid temperature
  • 0.002 in (0.0508mm) maximum shaft deflection
  • 150# FF standard or optional 300#RF connections
  • 50,000 hour L10 bearing life
  • 275psig (18.96) bar maximum working pressure
  • Up to 3550 rpm speed (2950 @ 50hz)
  • NEMA or IEC foot mounted motor

The Magnatex Pumps 3596 Series ANSI Pump has been designed to conform to ANSI/ASME B73.1 dimensional standards. It comes in 29 different size options and is available in a variety of materials from WCB, 316SS and CD4. All stainless steel and wet end components are investment cast, assuring excellent surface finish while eliminating cracks and porosity. Cast parts are manufactured using state of the art CNC machines to ensure proper fit-up and repeatability. High tolerance standards are closely maintained. Labyrinth seals seals are standard to protect bearing housing from environmental contaminants. Large metal and glass sight gauge ensures visibility of lubricant to help maintain proper oil level.
