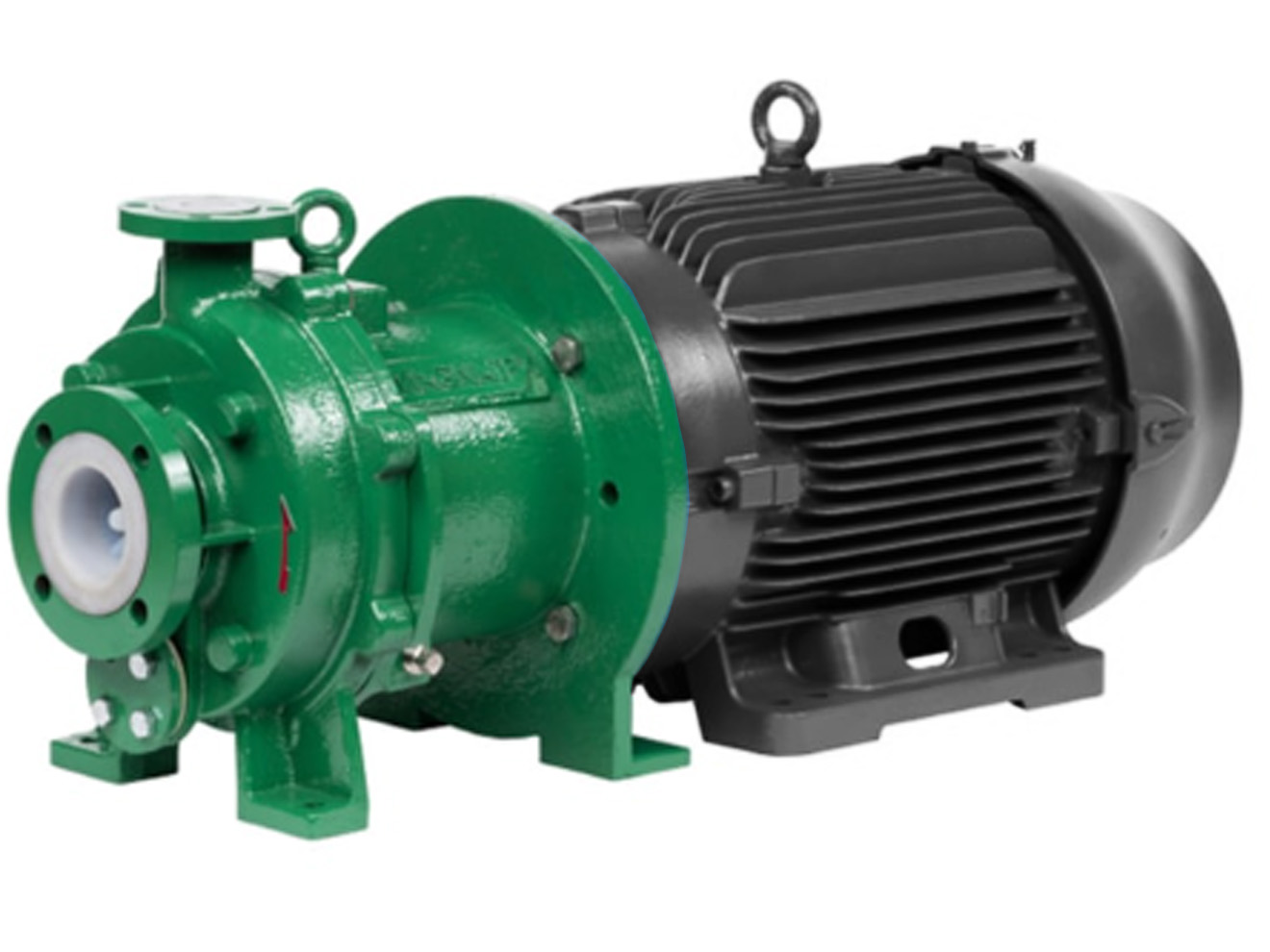

Magnatex MLZ Series Pump

ANSI/ASME B73.3 fluoropolymer lined sealless magnetic drive.

Select your options below…

Motor purchased separately

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $9,317.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1425 gpm maximum flow
  • 475 ft at 206 psi with water maximum head
  • 100 HP maximum power
  • 150lb RF flange connection
  • C-PTFE or optional SiC-Z bearing
  • SiC shaft
  • GFR-PTFE casing gasket
  • 150psig at 250ºF
  • Enclosed impeller
  • 3550 rpm speed
  • Neodymium magnets
  • NEMA Close-Coupled motor

The Magnatex MLZ Series Pump is an ANSI/ASME B73.3 fluoropolymer lined sealless magnetic drive pump. It features separable impellers and inner magnets and readily replaceable front thrust and impeller rings. There are no seals to fail, making it ideal for a wide range of chemical applications to help eliminate "reportable release" issues.
