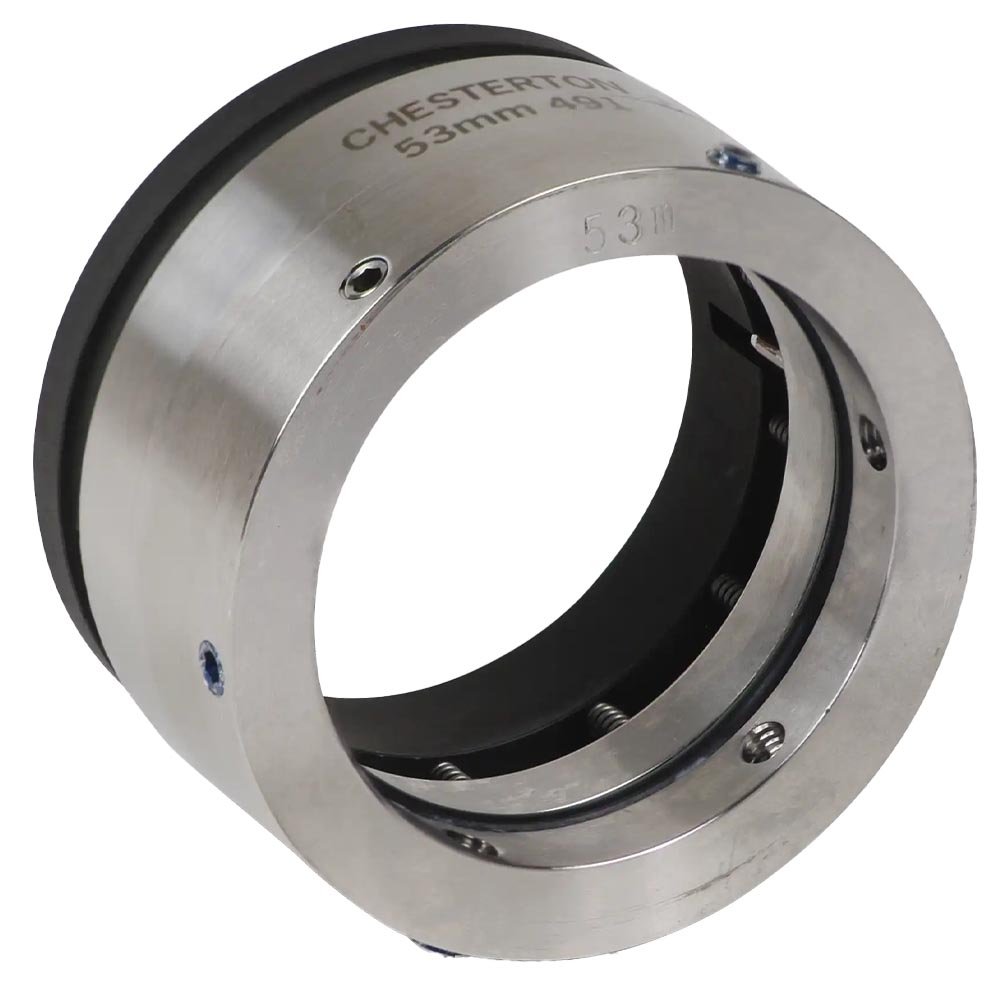

Chesterton 491 Rotary Internal Single Mechanical Seal

16 to 110mm shaft sizes, designed in accordance with EN 12756 to fit the short length installation requirements.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual

Effective April 15th, 2025 Chesterton has added a 3% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

Highlights...

Features

  • 16 to 110mm shaft sizes
  • -67 to 570°F (-55 to 300°C) operating temperature
  • 150psig (10barg) pressure rating
  • Face Materials:
    • Carbon Graphite/Ceramic
    • Carbon Graphite/Silicon Carbide
    • Silicon Carbide/Silicon Carbide
  • Elastomers
    • Ethylene Propylene (EP)
    • Fluorocarbon (FKM)
  • Up to 4000 FPM operating speed
  • 316 Stainless Steel / EN 1.4401 metal parts
  • Alloy C-276/EN 2.4819 springs
  • ISO-3069-S, NSF61, ATEX

The Chesterton 491 Rotary Internal Single Mechanical Seal is designed not to damage or fret the equipment shaft/sleeve because the dynamic O-Ring is positioned on a replaceable component surface. This balanced, high-pressure monolithic seal design provides a performance upgrade to standard, original equipment component seals. The seal can be easily rebuilt in the field using low-cost rebuild kits.
