Lewa Ecoflow High-Pressure Metering Pump

Fully custom high-pressure diaphragm process pump, combine various pump heads and drive units in a series or boxer configuration.

Call for pricing
Part Number
  • Ecoflow
Highlights...

Features

  • Flow rates up to 5,019 GPH per pump head (depending on pump head selection)
  • Discharge pressure up to 17,400 psig (depending on pump head selection)

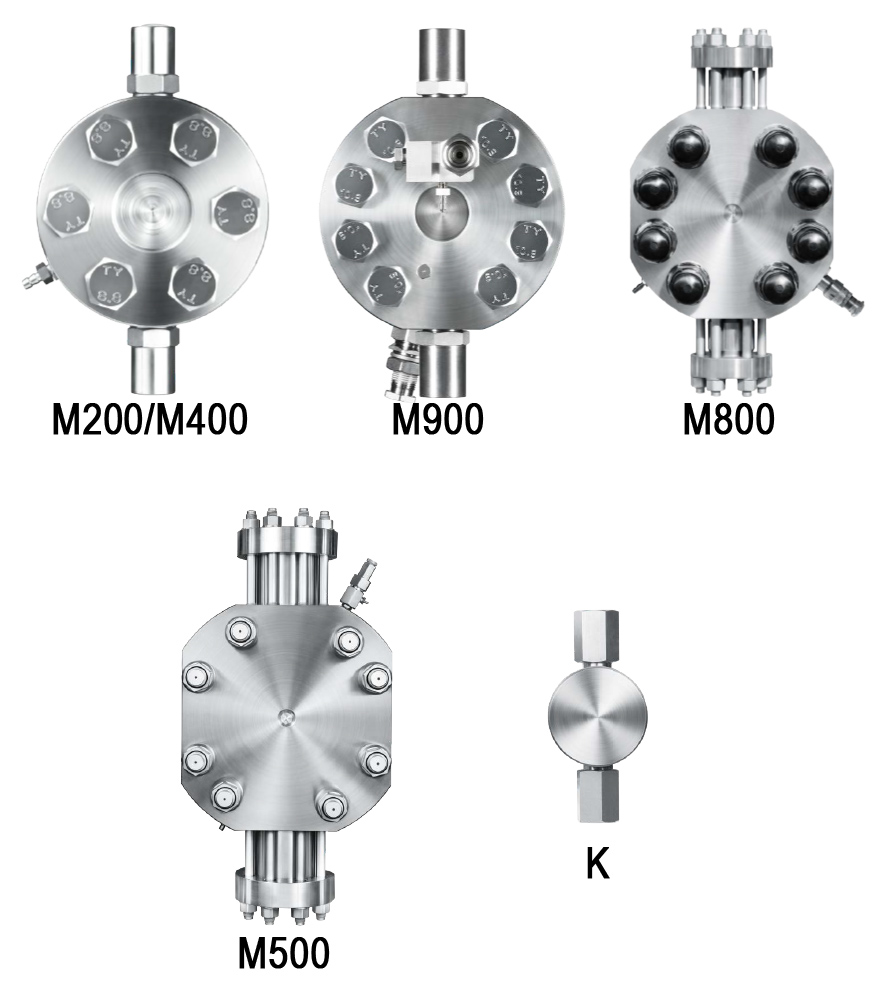

  • Pump Heads:
    • M900: universal model for fluids of any kind
    • M800: compact model for highest pressures
    • M500: universal model for high volume flows
    • M200/M400: model for high temperature applications
    • K: simple model for unproblematic fluids
  • Ball, Disc, Cone, or Custom valves available

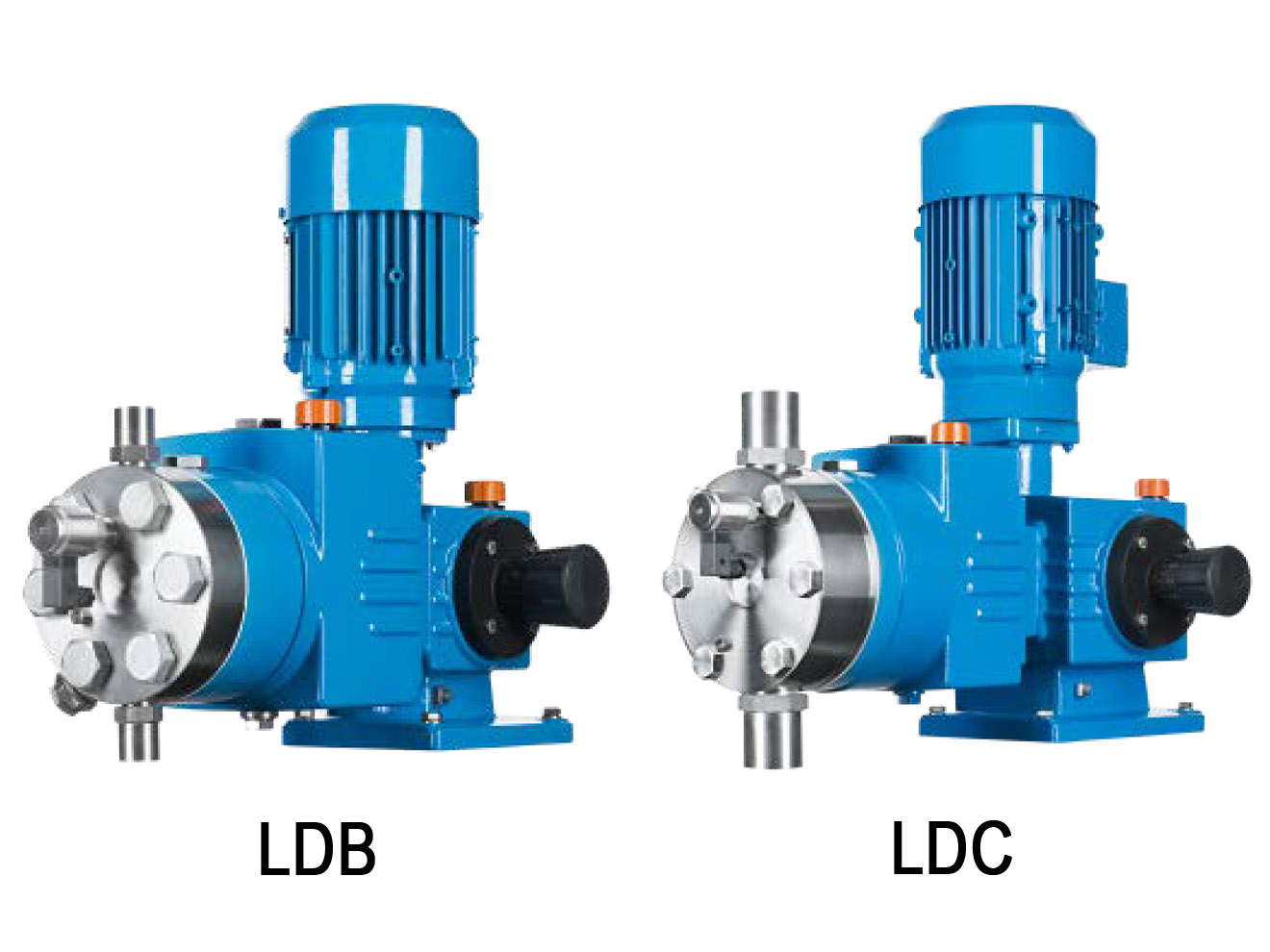

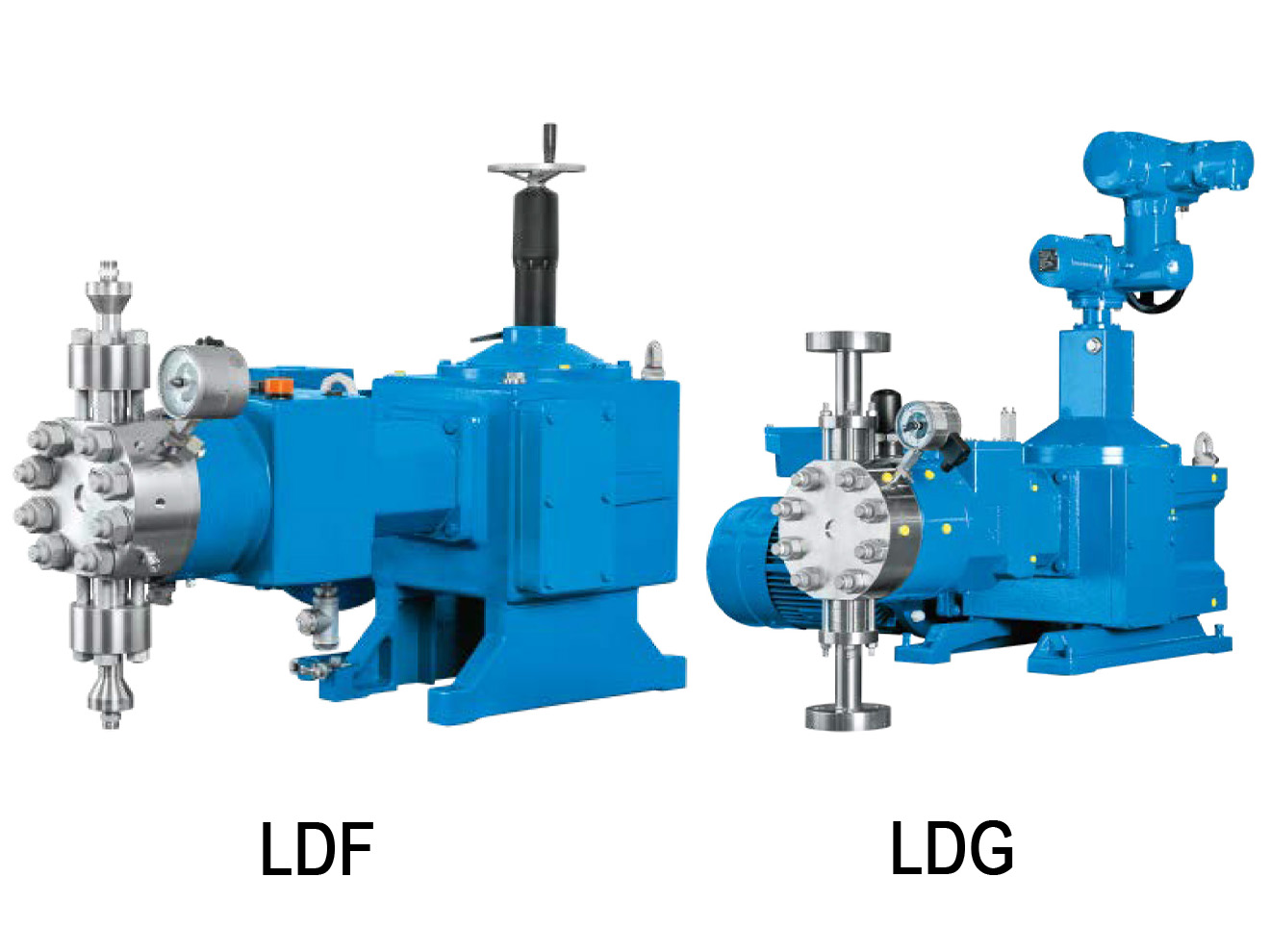

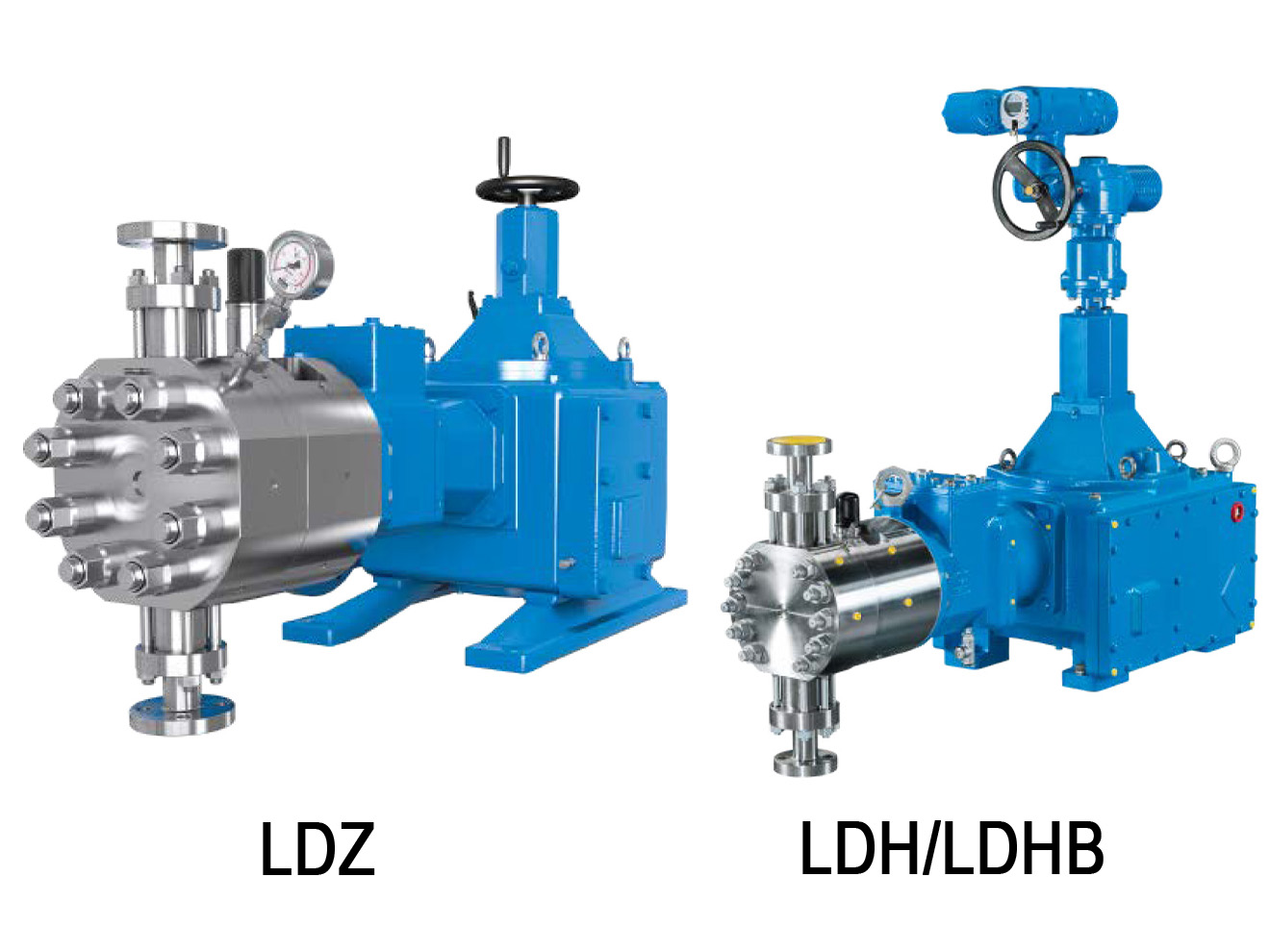

The Lewa Ecoflow High-Pressure Metering Pump is an extensive modular system for diaphragm and packed plunger metering pumps. It combines seven drive sizes with six different pump heads, offering flexibility in construction whether in-line or boxer design. The sandwich diaphragm, diaphragm protection system, and durable drive units combined ensures reliable operation even in extreme conditions. It is engineered to handle a wide range of media, including hazardous, combustible, toxic, abrasive, viscous, environmentally harmful, or sensitive fluids.

The Ecoflow works without dynamic seals. This permits a hermetically tight working area. There are no external emissions and contamination of the fluid is impossible.

The LEWA Ecoflow pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 1.45 psi (0.1 bar), The Ecoflow provides more than just a wide array of safe installation options.

Applications:

  • Chemical industry
  • Petrochemistry
  • Oil and gas industry
  • Energy utilities
  • Food and beverage industry
  • Pharma and biotechnology
