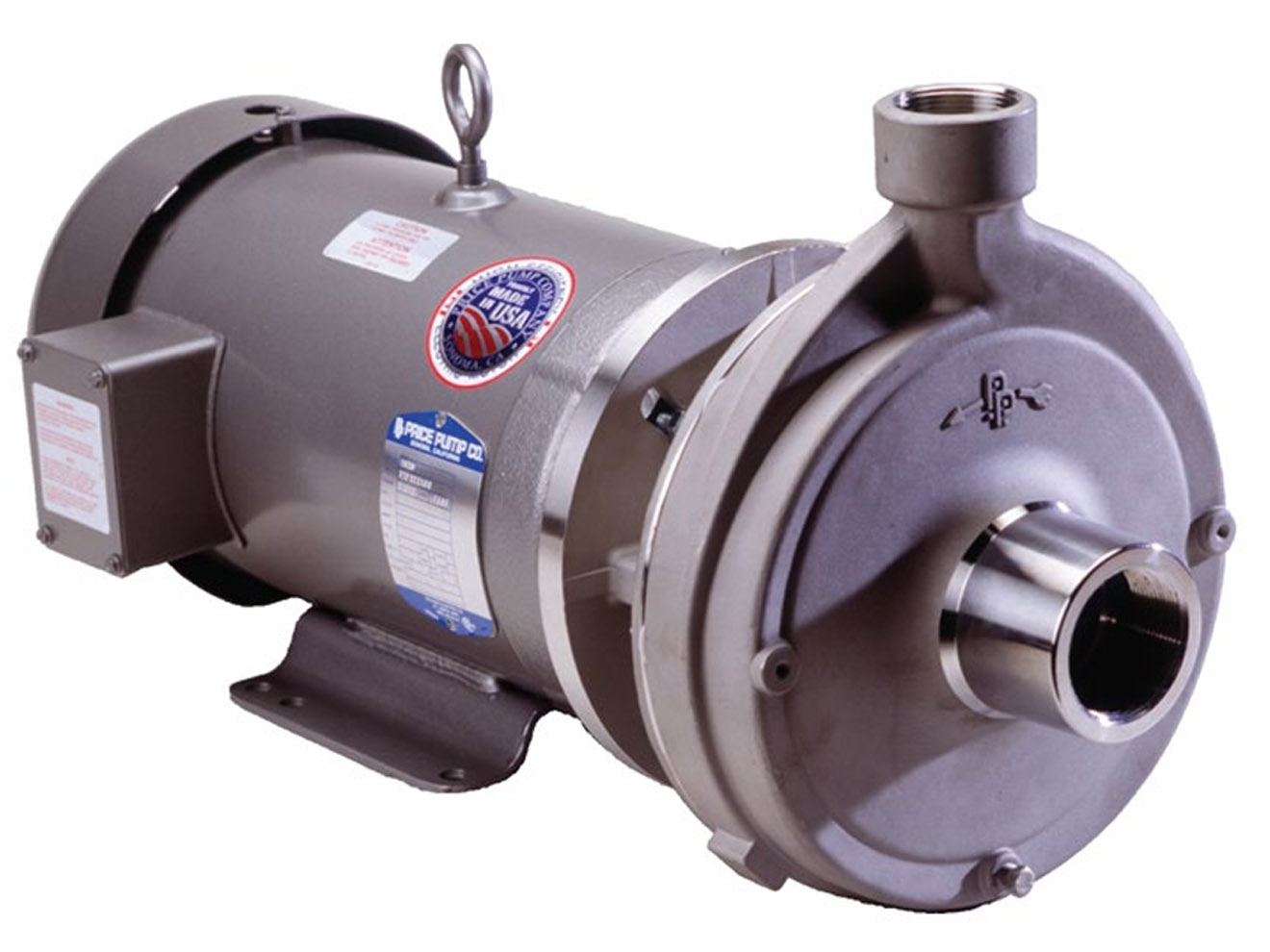

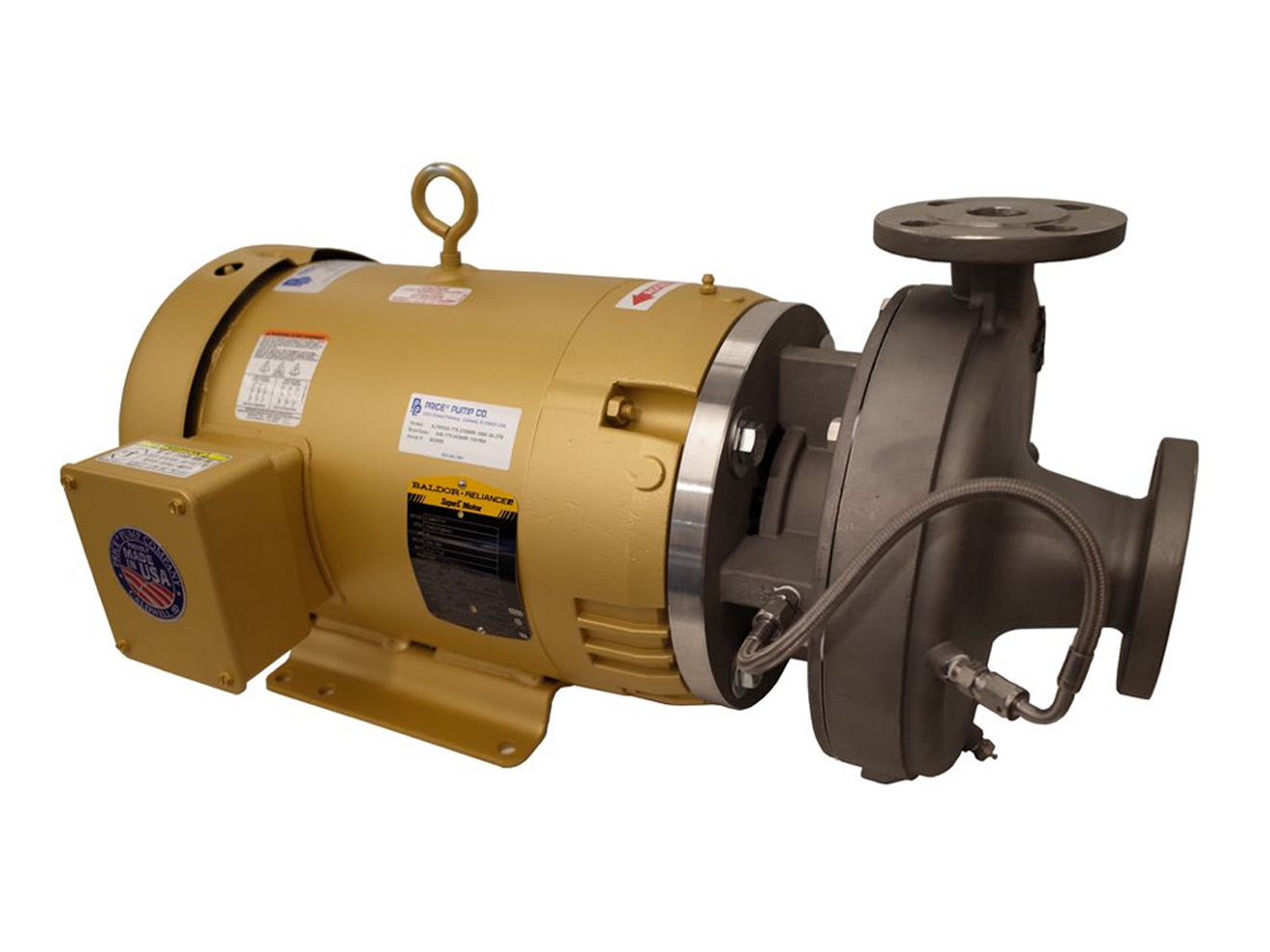

Price Pump XJ/JB Series Close Coupled Centrifugal Pump, NPT or ANSI Flange

FNPT or ANSI flange, 20, 40 or 90 GPM, 0.12, 0.25 or 0.44in Maximum Solids, Up to 50 HP depending on Model.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $6,143.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Price Pump XJ Series Close Coupled Centrifugal Pump ANSI Flange Datasheet Price Pump JB Series Close Coupled Centrifugal Pump FNPT Datasheet

Expedite Shipping Options Available

Highlights...
  • By Price Pump
  • Usually ships in 7-10 business days

Features

  • 20, 40 or 90 GPM
  • 0.12, 0.25 or 0.44in Maximum Solids
  • Up to 50 HP depending on model
  • 20, 40 or 90 GPM
  • 8in maximum impeller diameter
  • NEMA JM Motor Standard
    • Open Drip, Totally Enclosed, and Explosion Proof options available
  • Mechanical Seal: 1 and 1/2in Type 21 Fluorocarbon, carbon Vs Ceramic Standard, Type 9 PTFE.
    • Double seal options for Type 21 and Type 9
  • Optional seal flush and seal quench
  • Close coupled through 40 horsepower
  • Replaceable shaft sleeve
  • 150lb centerline ANSI or FNPT dimensioned flange
  • Optional power frame available

The Price Pump XJ/JB Series features a standard NEMA JM Motor, with FNPT or ANSI flange. Open Drip, Totally Enclosed, and Explosion Proof options available. Motors with up to 50 Horsepower depending on model. 1 and 1/2, 2 or 3in FNPT or ANSI Flange available. Standard JM NEMA motor enclosure with Open Drip, Totally Enclosed, and Explosion Proof options available.

Mechanical seal options included 1 and 1/2in Type 21 Fluorocarbon, Carbon vs Ceramic standard and Type 9 PTFE. 21 Advantage features an Viton or EPR Elastomer and Graphite Loaded Silicon faces. Type 2 is a heavy elastomer bellows seal. Type 21 and Type 9 are available as a double mechanical seal. Optional power frame is available.

Applications:

  • Waste Water Treatment
  • Hot Solvents
  • Deionized Water
  • Chemical Process
  • Plating Equipment
  • Agricultural Chemicals
