QuantumFlo MicroFlo Series Booster Pump

60 to 70 GPM max flow rate, 70 to 138ft max head, highly efficient 1 or 2 pump skid configurations.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Models available:
    • 1 HP: 60 GPM max, 70ft head max, 4.5in impeller
    • 1.5 HP: 65 GPM max, 95ft head max, 5in impeller
    • 3 HP: 70 GPM max, 138ft head max, 5.88in impeller
  • Voltages:
    • 230/1/60
    • 208/3/60
    • 460/3/60
    • 575/3/60
  • 304 Stainless steel pumps and fittings
  • Variable Frequency Drives and Master Power Switch included as standard
  • IP66 Rated VFDs and TEFC Motors
  • Multi-functional digital pressure sensor
  • Non-slam (Silent) operation
  • 1.25in NPT connections
  • 1 year warranty
  • Note: Impellers are non-trimmable

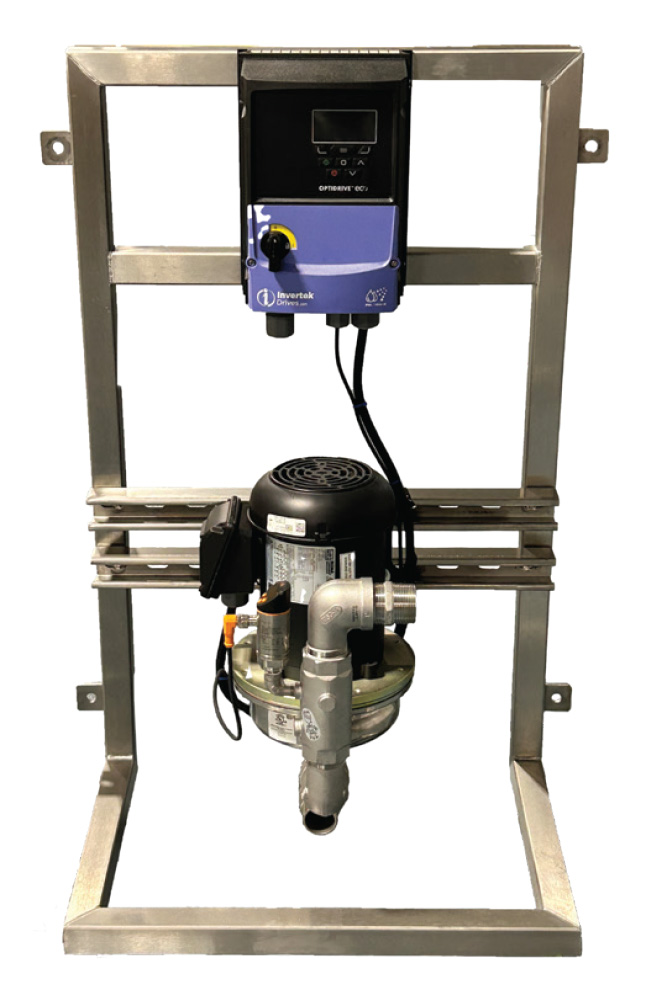

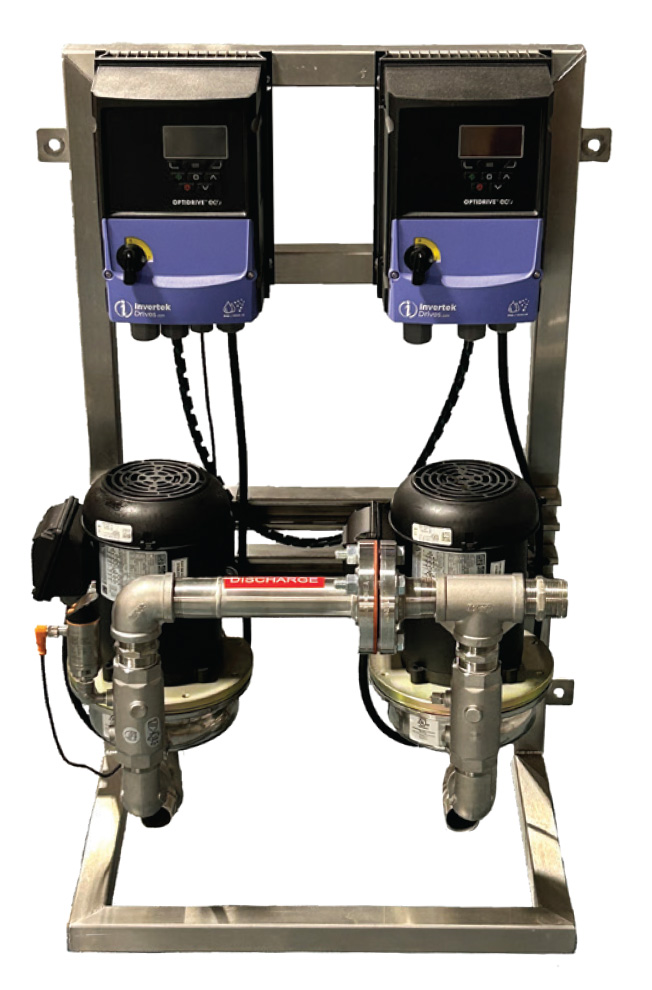

The QuantumFlo MicroFlo Series Booster Pump is a compact, highly efficient 1 or 2 pump skid package designed to solve low water pressure challenges in residential and light commercial applications. The MicroFlo features an advanced variable speed controller and integral pressure transducer, automatically adjusting the speed of the motor according to system demand, providing energy savings compared to constant speed units.

Applications:

  • Low Flow - Low Boost
  • Strip Malls / Restaurants
  • Multi-Family Housing
  • Small Office Buildings
  • Truck Stops / Car Washes
