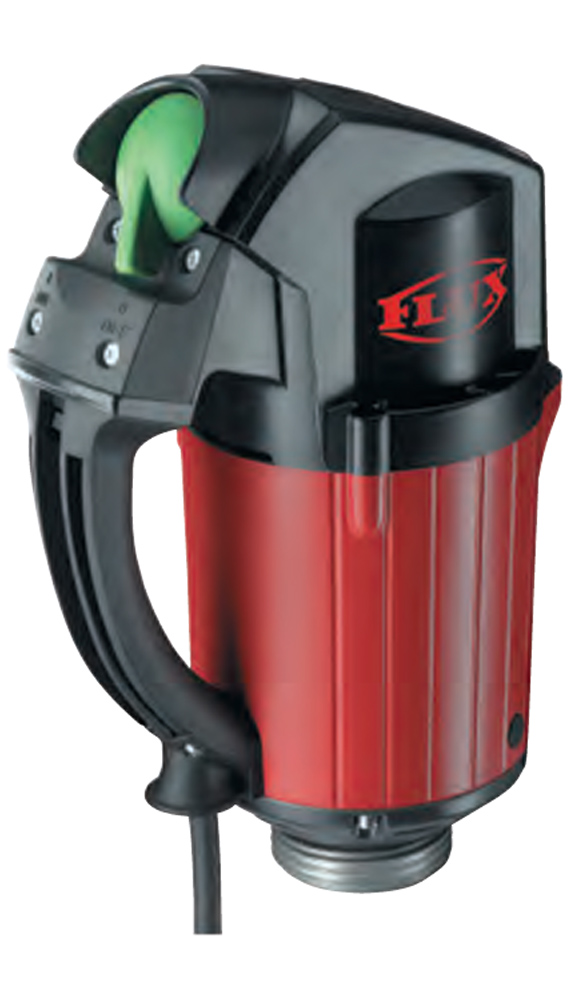

Flux Pumps F458 Commutator Motor

Single phase, high power commutator pump motor for Flux drum and container pumps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,545.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Aluminum housing
  • 460 watt output for F458 and F458 EL
  • 700 watt output for F458-1
  • 8500 RPM nominal speed for F458 and F458 EL
  • 9500 RPM nominal speed for F458-1
  • -4 to 104°F operating temperature
  • 16ft cable included
  • Optional CEE 7/17 or NEMA 5-15P plug
  • Optional Low Voltage Protection
  • IP 55 protection class rated

The Flux Pumps F458 Commutator motor features a compact design in an aluminum double casing. Corrosion-resistant paint makes the F458 well suited for corrosive, vapor laden atmospheres. It is fully closed and offers Protection Class I or III safety standard. Optional low voltage protection prevents uncontrolled start-up of pump after power failure.

Manufacturer Stock

Part Number Price Available
10-45800044
Show Configuration
$1,252.00 58 in stock
10-45801034
Show Configuration
$1,716.00 35 in stock
10-45800031
Show Configuration
$1,252.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 to 6 weeks". Click here to select options
