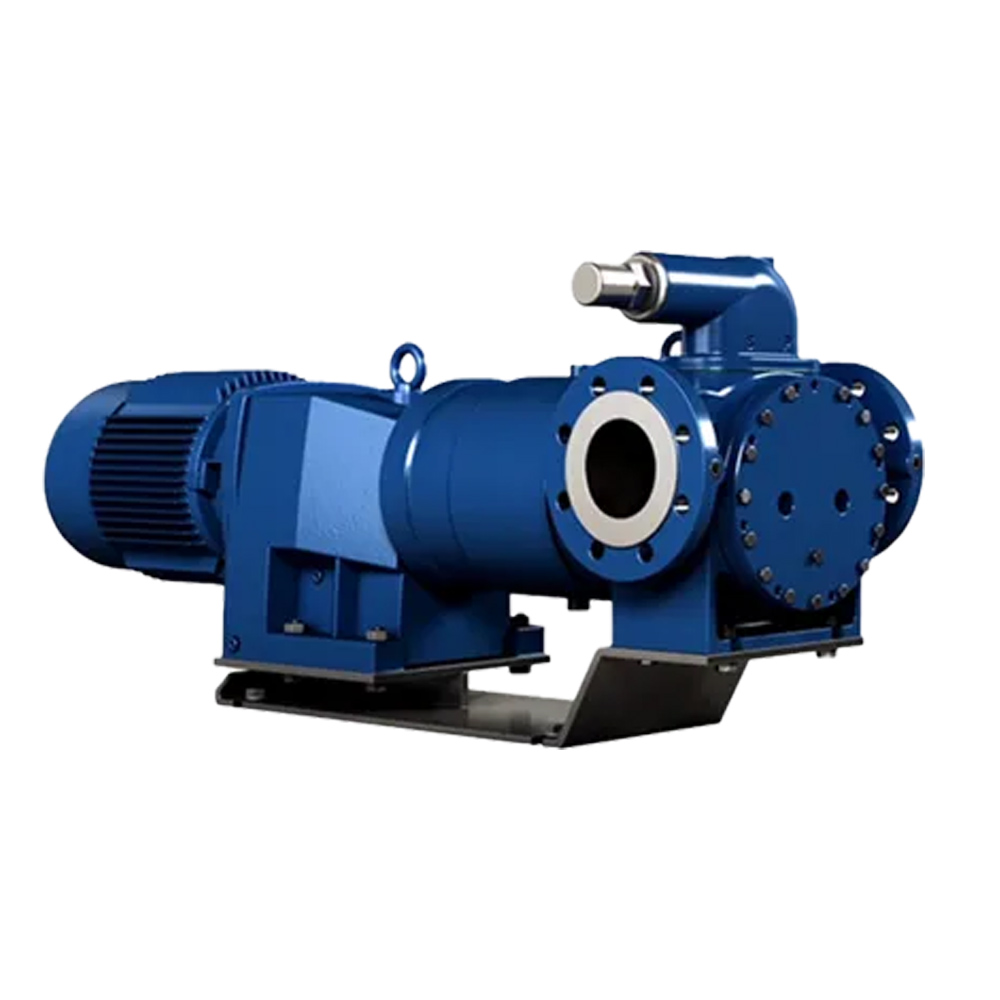

DESMI/Rotan ED Series Environmental Duty Internal Gear Pump

Long life cycle pump for environmental applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Highlights...

Features

  • Capacity up to 396 GPM (90m3/h)
  • Speeds up to 1,750 RPM
  • Differential pressure up to 232 PSI (16bar)
  • Suction lift:
    • Up to 7.25 PSI (0.5bar) vacuum while priming
    • Up to 11.6 PSI (0.8bar) vacuum while pumping
  • Viscosity range up to 10,000 cSt
  • Temperature up to 482°F
  • 1 to 6in pump size (DN25 to DN150)

The DESMI/Rotan ED Series Environmental Duty Internal Gear Pump has a magnetically coupled internal gear pump, providing protection against leakage. It requires minimal maintenance making it well suited for environmental applications. The optional double acting relief valve reverses the direction of flow. The coupled direct to NEMA or IEC electric motor eliminates alignment issues. The rotor end clearance is adjustable while maintaining a closed system. Upwards of 800 feet/pound torque.

Applications:

  • Isocyanate
  • Solvents
  • Hazardous organic liquids
  • Printing Ink
  • Resin
  • Pitch
  • Alkyd resin
  • Soybean oil
  • Linseed oil
  • Monomers
  • Polyol
  • Corn Syrup
