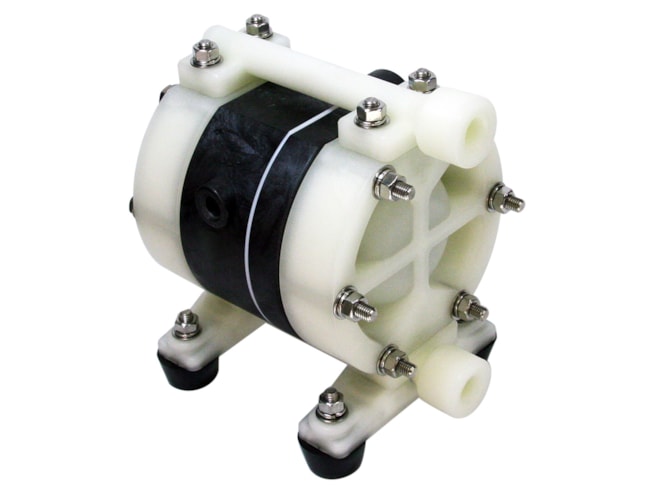

Iwaki Air TC-X102 Series 3/8in Chemically Resistant Air Motor Pump

Name: Iwaki Air TC-X102 Series 3/8in Chemically Resistant Air Motor Pump
Price: 509.0 USD
Availability: InStock

Air operated double diaphragm pump with 3/8in connections and a maximum flow rate of 6.3 GPM.

Effective April 30th, 2025 Iwaki Air has added a 10% surcharge for all products. The surcharge will appear as a separate line item on the order.

Highlights...

By Iwaki Air
Manufacturer has some models in stock. View available part numbers.

Features

Available in glass fiber reinforced polypropylene (PPG)
C-spring spool valve type
Maximum flow rate: 6.3 GPM
Maximum discharge head: 230ft
Maximum air consumption: 14.1scfm
Supply air pressure range: 30 to 100 PSI
NPT 3/8in connection suction/discharge
CE certification

The Iwaki TC-X102 Series is a line of 3/8in air operated double diaphragm pumps that are available only in glass fiber reinforced polypropylene (PPG). Additionally, there are a multitude of diaphragm material options available. The air section of the pump is chemically resistant. It is CE certified and contains a C-spring spool valve. The maximum flow rate is 6.3 GPM and the maximum discharge head is 230ft. The maximum air consumption of these pumps is 14.1scfm.

Spec Sheets

Iwaki TC-X102 Series Chemically Resistant Air Motor Pump Datasheet (158 KB)

Manuals

Iwaki TC-X102 Series Chemically Resistant Air Motor Pump Manual (1.3 MB)

Manufacturer Stock

Part Number	Price	Available
TC-X102PS-NPT Show Configuration	$509.00	40 in stock
TC-X102PT-NPT Show Configuration	$559.00	10 in stock
TC-X102PN-NPT Show Configuration	$509.00	5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
