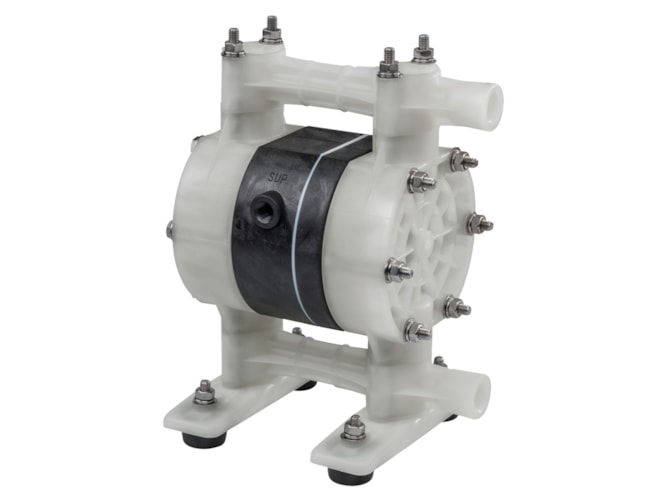

Iwaki Air TC-X151 Series 1/2in Dead Head Air Motor Pump

Air motor pumps with 1/2in NPT connections and metallic or non-metallic material options available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $559.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Effective April 30th, 2025 Iwaki Air has added a 10% surcharge for all products. The surcharge will appear as a separate line item on the order.
Highlights...

Features

  • Materials available: Aluminum, PVDF, Acetal, stainless steel, glass fiber reinforced polypropylene
  • Maximum flow rate: 14.3 GPM
  • Maximum discharge head: 230ft
  • Maximum air consumption: 14.1 to 15.9scfm
  • C-spring valve spool valve type
  • Certification: CE, ATEX (select models), FDA (stainless steel models)
  • Flat valve and ball check valve options

The Iwaki TC-X151 Series is a line of metallic and non-metallic pump options with 1/2in NPT connections. These pumps are designed to handle frequent start/stop, dead head, and high pressure type applications. These pumps come in a variety of materials: aluminum, PVDF, Acetal, stainless steel, and glass fiber reinforced polypropylene options are available. They are CE certified, with select models being ATEX or FDA certified (please see the datasheet for more details). They operate with a maximum flow rate of 14.3 GPM and a maximum discharge head of 230ft.

Manufacturer Stock

Part Number Price Available
TC-X151PT-NPT
Show Configuration
$559.00 4 in stock
TC-X151VS-NPT
Show Configuration
$927.00 4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
