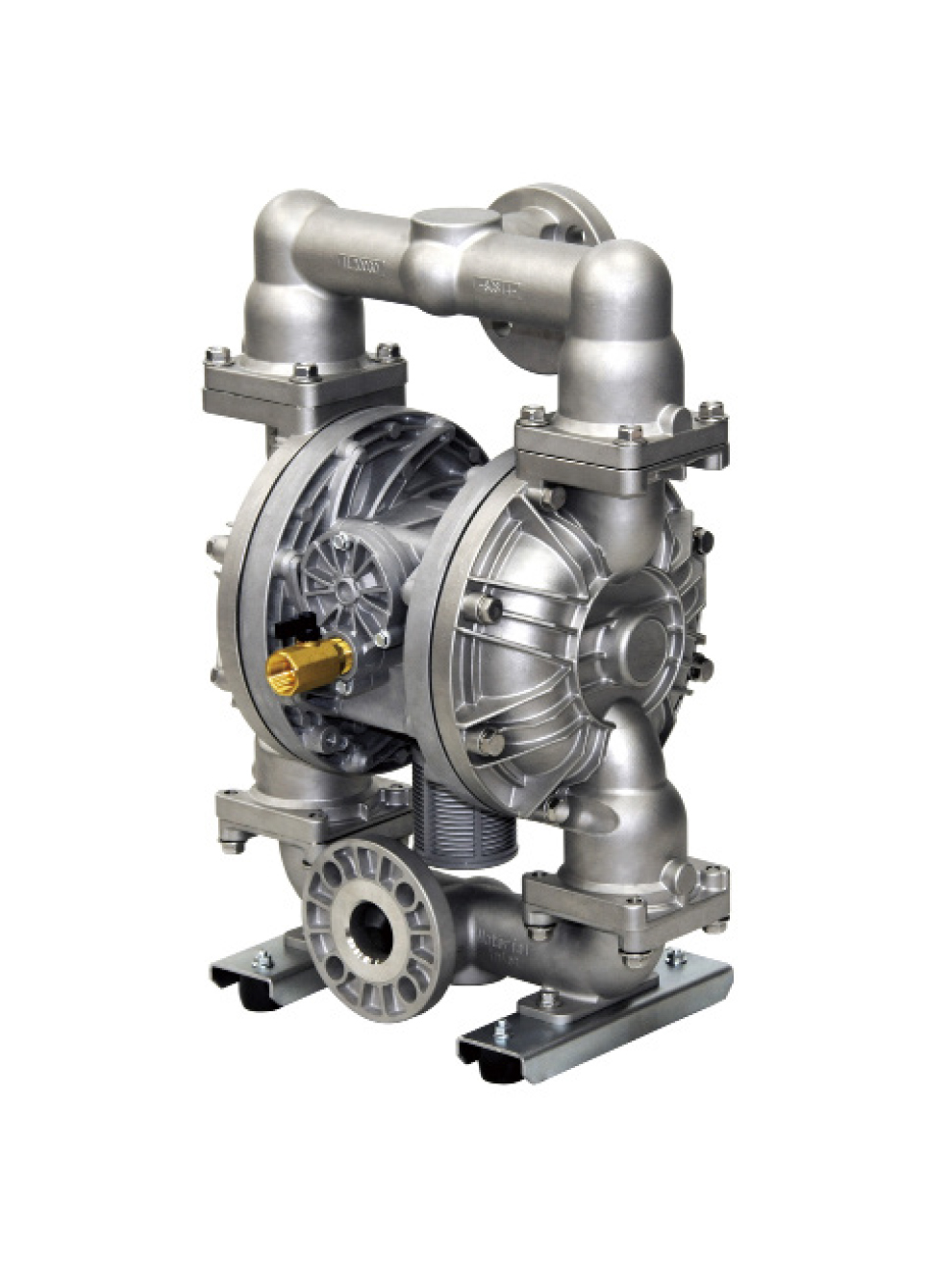

Iwaki Air TC-X400 / 400-M Series 1 1/2in Heavy Duty Air Motor Pump

Available with optional mechanical air spool.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,570.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Iwaki Air TC-X400 Series 1 1/2in Heavy Duty Air Motor Pump operations manual Iwaki Air TC-X400-M Series 1 1/2in Heavy Duty Air Motor Pump with mechanical air spool ops manual Iwaki Air TC-X400 Series 1 1/2in Heavy Duty Air Motor Pump service manual Iwaki Air TC-X400-M Series 1 1/2in Heavy Duty Air Motor Pump with mech air spool service manual
Iwaki Air TC-X400 Series 1 1/2in Heavy Duty Air Motor Pump datasheet Iwaki Air TC-X400-M Series 1 1/2in Heavy Duty Air Motor Pump with mechanical air spool datasheet
Highlights...

Features

  • 158.5 GPM max. flow rate
  • 288.75ft max. discharge head
  • Wetted pump body material:
    • Aluminum (ADC12)
    • Cast iron (S45C)
    • Cast stainless steel (SCS14)/SS316
    • PPG
    • GFRPP
    • PVDF
  • Diaphragm material:
    • Hytrel (TPEE)
    • PTFE
    • Santoprene (TPO)
    • Neoprene (CR)
    • Buna (NBR)
    • Viton (FKM)
    • EPDM
  • Spool valve type: Looped C spring valve
  • CE & ATEX certifications
  • FDA certification for SS models

The Iwaki Air TC-X400 / 400-M Series 1 1/2in Heavy Duty Air Motor Pump offers excellent flow rates and an improved heavy duty body design fitted with the Looped C Air Motor Technology. The pump can operate with variable air pressures and is suited for both start/stop and fully continuous duty pumping applications. It can easily handle high pressure and long discharge piping.

Iwaki Air CF-X Series Liquid Pulsation Dampener
Iwaki Air CF-X Series Liquid Pulsation Dampener

Fully automatic operation with self-adjusting speed and pressure control to balance an increase in system liquid pressure.

Starting at $834.00

Manufacturer Stock

Part Number Price Available
TC-X400GSA-M
Show Configuration
$2,503.00 11 in stock
TC-X400GTA-M
Show Configuration
$3,400.00 3 in stock
TC-X400VSA-MX
Show Configuration
$6,288.00 3 in stock
TC-X400VSA-X
Show Configuration
$5,698.00 2 in stock
TC-X400ANA-M
Show Configuration
$1,570.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
