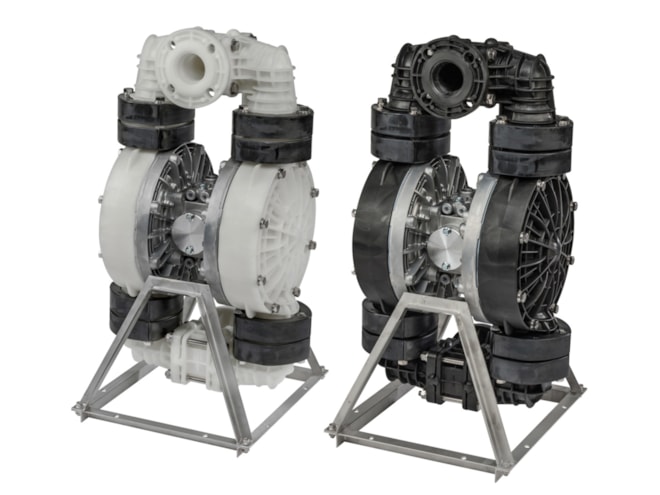

Iwaki Air TC-X500 Series 2in Heavy Duty Air Motor Pump

Air motor pump with 2in connections and a maximum flow rate of 190.2 GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $1,599.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Effective April 30th, 2025 Iwaki Air has added a 10% surcharge for all products. The surcharge will appear as a separate line item on the order.
Highlights...

Features

  • Metallic or non metallic options available
    • Available in: stainless steel, aluminum, polypropylene, and PVDF
  • Maximum flow rate: 190.2 GPM
  • Maximum discharge head: 280ft
  • Maximum air consumption: 212scfm
  • Coil spring air spool valve type
  • Certifications available: CE, ATEX, FDA (only on SS models)

The Iwaki TC-X500 series is a line of heavy duty air-operated double diaphragm pumps designed for a variety of applications. They operate at variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They are capable of handling high pressure environments as well as long discharge lines. These pumps operate at a maximum flow rate of 190.2 GPM and a maximum discharge head of 280ft, depending on model selection. They are available with CE and ATEX certifications. Additional FDA certification is available for stainless steel models only.

Manufacturer Stock

Part Number Price Available
TC-X500PT-FLA
Show Configuration
$4,204.00 17 in stock
TC-X500SN-NPT
Show Configuration
$4,644.00 3 in stock
TC-X500PS-FLA
Show Configuration
$3,301.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
