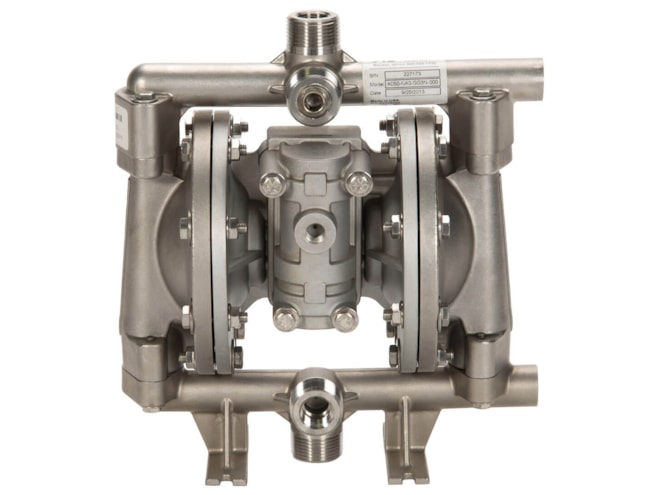

All-Flo A050 Metal Air-Operated Double-Diaphragm Pump

Name: All-Flo A050 Metal Air-Operated Double-Diaphragm Pump
Price: 764.0 USD
Availability: BackOrder

Features a high efficiency air-valve with a maximum air pressure of 120psi.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .

Starting Price: $764.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}

Configured Part No. {{ calcPartNumber }}

Quantity

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Specs

Highlights...

By All-Flo
Call for availability

Features

1/4in FNPT air inlet
1/2in liquid inlet
1/2in liquid discharge
FNPT/FBSPT (threaded) connection
6.4 in max depth
15 GPM max flow

The All-Flo A050 Air-Operated Double-Diaphragm Pump is a 1/2" metal pump that features a max pressure of 120psi and a max flow rate of 15 GPM. The max suction lift capability is 15 ft-H2O (4.6 m-H2O) dry, or 31 ft-H2O (9.4 m-H2O) wet. The liquid connection type is FNPT, with the standard suction port and the standard discharge port on the right.
