All-Flo A200 Stainless Steel Air-Operated Double-Diaphragm Pump

Name: All-Flo A200 Stainless Steel Air-Operated Double-Diaphragm Pump
Price: 5514.0 USD
Availability: BackOrder

Standard configuration AODD pump with 2-inch combination ANSI/DIN flange and NPT.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .

Starting Price: $5,514.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}

Configured Part No. {{ calcPartNumber }}

Quantity

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Manual

Product Specs

Highlights...

By All-Flo
Call for availability

Features

3/4in FNPT air inlet
2in liquid inlet and discharge ports
190 GPM max flow rate
120psi max pressure
1/4in max diameter solids
Max suction lift capability:
- 24.4 ft-H2O dry
- 31.7 ft-H2O wet

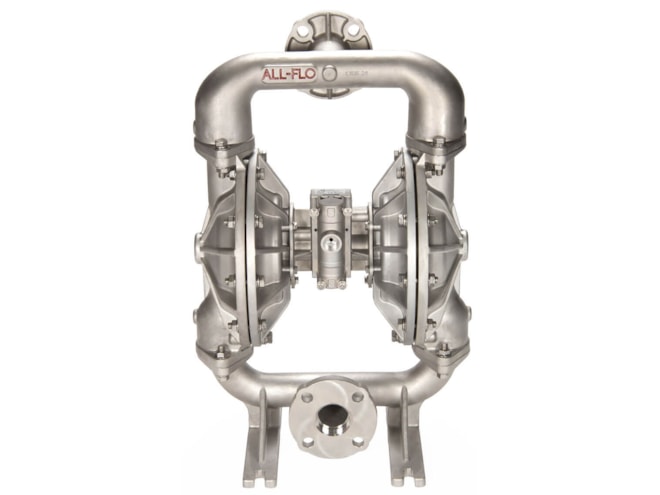

The All-Flo A200 Stainless Steel Air-Operated Double-Diaphragm Pump is a 2-inch air-operated diaphragm pump with bolted construction. It features a stainless steel housing, an aluminum air section, and Santoprene diaphragms.

The pump is a standard configuration, with the port positions for this pump located at the front center for suction and at the rear center for discharge.
