Overview

Features

  • Non-clog, solids handling pump with vortex multi-vane impeller
  • 59 to 726 GPM max flow
  • Cast iron construction
  • 304 stainless steel motor housing
  • Oil-lubricated, double mechanical seals
  • Seal Minder moisture detection system (optional)
  • Built-in thermal protection
  • Class F insulation
  • Single and 3-phase voltages
  • 33ft power cable standard

Description

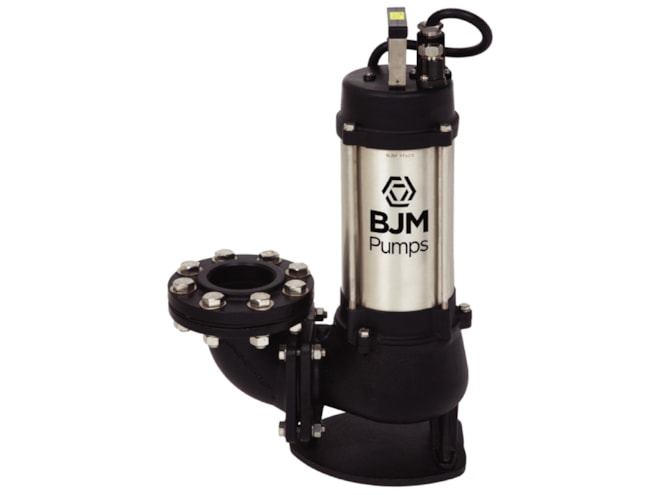

The BJM Pumps SV Series electric submersible pump is equipped with vortex impellers which make it suitable for handling mud, raw sewage, viscous liquids, rags, wood chips, and other solids. It can pass solids up to 90% of the pump outlet diameter, which means that it can significantly reduce downtime, saving on repair, labor, and replacement costs. The pump features a double mechanical seal design that is oil-lubricated, with an early warning seal failure protection circuit that ensures the longest possible pump and motor life. The motor windings have embedded NEMA Class F winding insulation and thermal sensor switches to provide thermal and over-amperage motor protection.

Example applications:

  • Sewage
  • Viscous liquids
  • Rags
  • Effluent water
