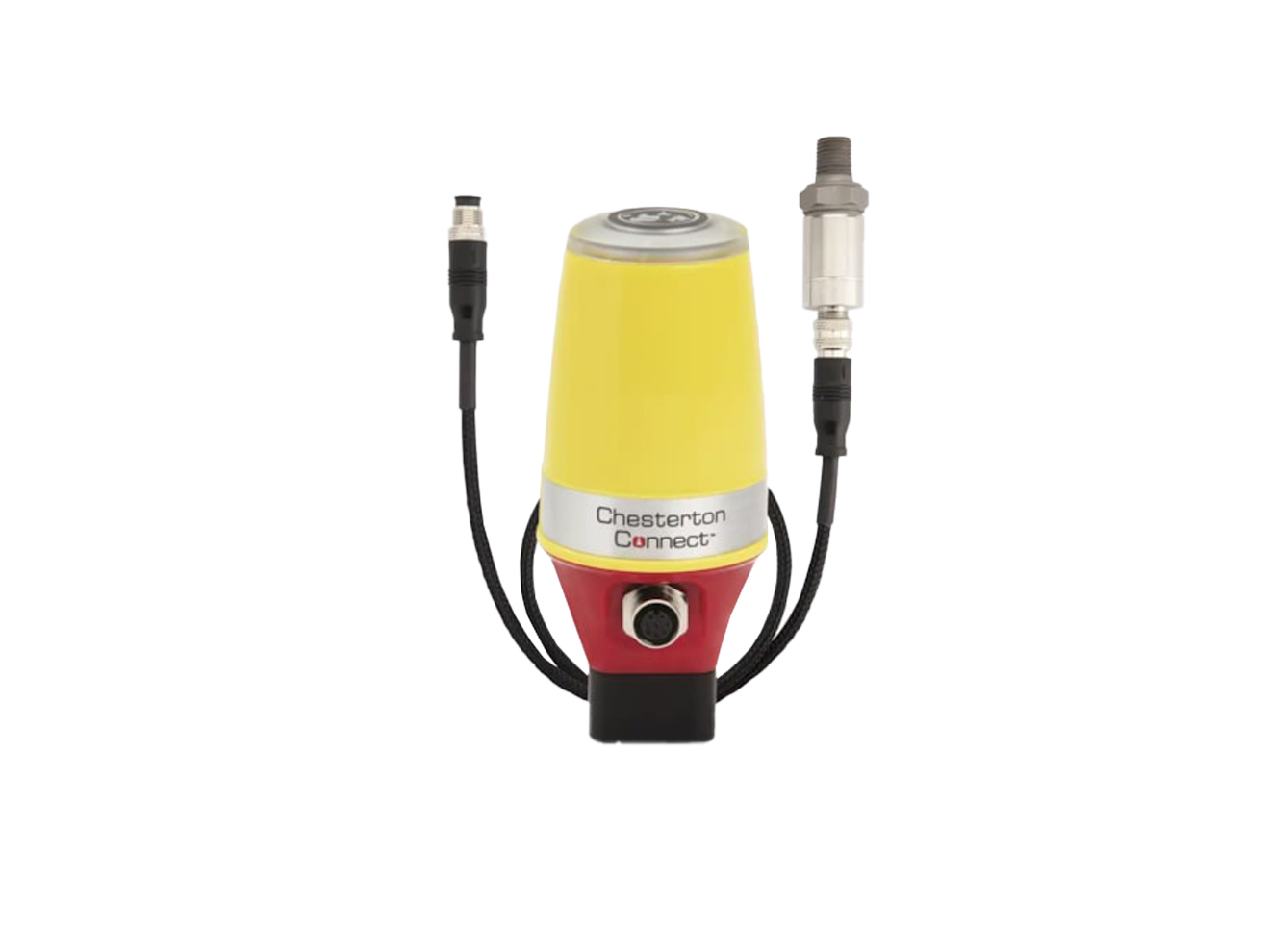

Chesterton Connect Sensor

Simplified equipment and process monitoring for pumps and sealing systems.

Chesterton Connect Sensor Version 1
Chesterton Connect Sensor Intrinsically Safe

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Starting Price: $1,294.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Chesterton
FREE Shipping
Usually ships in 7-10 business days

Features

Intrinsically safe option available
68 bar g (1,000 psig) or -1-68 bar g (-14.7-1000 psig) Pressor sensor limit depending on model
-4 to 185°F body temperature
-4 to 257°F sensor temperature
3-axis accelerometer vibration sensor
Replaceable 3.6V lithium thionyl chloride battery
1/4in NPT connection

The Chesterton Connect Sensor is a simple to use data acquisition tool that enables safe and convenient monitoring of process and equipment operating conditions. Utilizing Bluetooth technology and a robust design to withstand harsh environments, the Chesterton Connect easily monitors equipment vibration, process and surface temperature, process pressure.

Easily installed, the Chester Connect Sensor combined with user-friendly app allows for connection of multiple sensors providing a comprehensive view of equipment health. The mobile app's thresholds settings and in-unit LED display system alerts of undesirable events, minimizing unplanned downtime and asset failure. Better understand equipment operation with data export for analysis.
