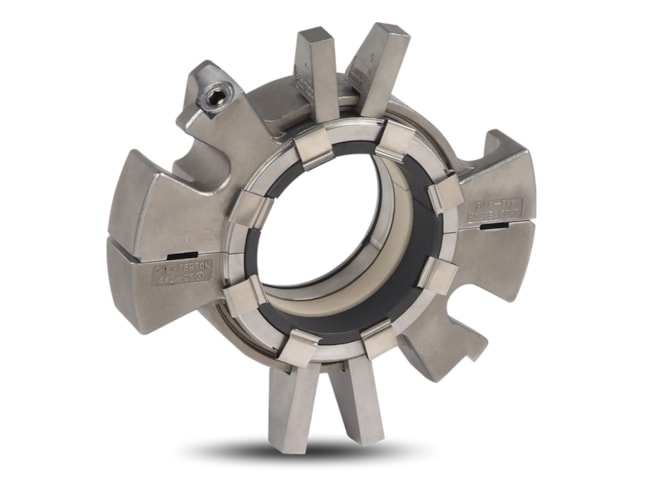

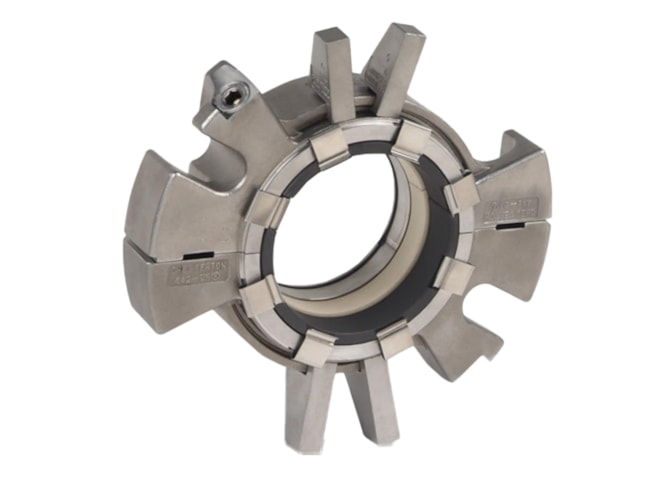

Chesterton 442 Split Mechanical Seal

Split seal, 25 to 195 size range, 28inHg vacuum, 450psig (30bar), 4000 fpm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,957.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Chesterton 442 Split Mechanical Seal Manual (English) Chesterton 442 Split Mechanical Seal Manual (Other Languages) Chesterton 442 Split Mechanical Seal 8 to 12 Inch Shafts Installation Instructions (English) Chesterton 442 Split Mechanical Seal Large Shaft Diameter Manual (English)
Chesterton 442 Split Mechanical Seal Datasheet (English) Chesterton 442 Split Mechanical Seal Datasheet (Other Languages) Chesterton 442 Split Mechanical Seal 8 to 12 Inch Shafts Datasheet (English) Chesterton 442 Split Mechanical Seal Large Shaft Diameter Datasheet (English)

Effective April 15th, 2025 Chesterton has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

Highlights...

Features

  • 1 to 36in size range
  • 28inHg vacuum
  • 450psig (30barg)
  • 4000 fpm
  • 250°F Maximum temperature
  • ISO-3069-S
  • ASME B73.1
  • ASME B73.2
  • NSF61
  • ACS, ATX
The Chesterton 442 Split Mechanical Seal is suited for equipment that is difficult and time-consuming to disassemble, such a large pumps, vertical pumps, and horizontal split case pumps. This proven, compact design can be used in a wide variety of equipment and process fluids.
The 442's high performance split technology allows to operate from vacuum to high pressure. It's compact design allows for easy installation and fit advantage on most equipment. Split, low-cost repair kits reduce ongoing maintenance costs even further. Designed with the installer in mind, the ball-and socket O-Rings provide a quick and easy seal without the use of adhesives. Captive screws cannot fall out, making installation straightforward and reliable.
