Grundfos CRI3-5 A-CA-A-V-HQQV 1x115/230 60HZ

Name: Grundfos CRI3-5 A-CA-A-V-HQQV 1x115/230 60HZ
Price: 1579.24 USD
Availability: BackOrder

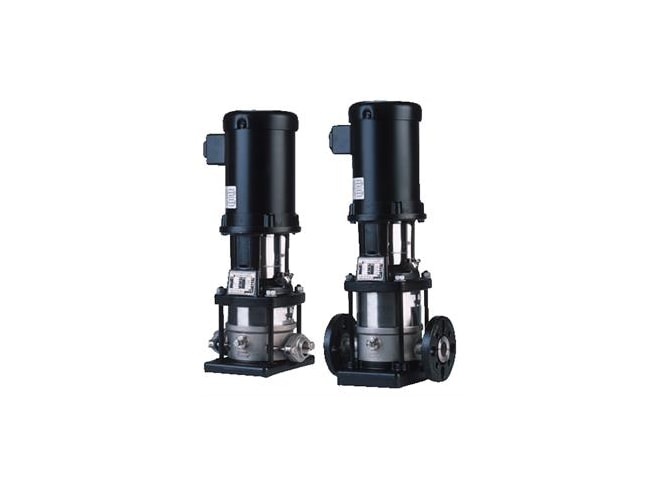

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

$1,579.24

Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.

Part Numbers

CRI3-5 A-CA-A-V-HQQV 1x115/230 60HZ
99916392
CRI 3-5 A-CA-A-V-HQQV

Highlights...

CRI3-5 A-CA-A-V-HQQV 1x115/230 60HZ
By Grundfos
Call for Availability

Features

Rated pump speed: 3464 rpm
Rated flow: 15.4 US gpm
Rated head: 111.2 ft
Maximum head: 154.5 ft
Stages: 5
Impellers: 5
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQV
Code for shaft seal: HQQV
Approvals: CURUS
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Cooling: IC 411
Base: Stainless steel
Impeller: Stainless steel
Material code: A
Code for rubber: V
Bearing: SIC
Maximum ambient temperature: 104 °F
Maximum operating pressure: 362.59 psi
Max pressure at stated temperature: 363 psi / 194 °F
Type of connection: FlexiClamp
Size of inlet connection: DN 32
Size of suction port: 1 1/4 inch
Size of outlet connection: DN 32
Size of outlet port: 1 1/4 inch
Pressure rating for connection: PN 25
Flange size for motor: 56C
Connect code: CA
Pumped liquid: Water
Liquid temperature range: -4 .. 194 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: NEMA
Motor type: WEG
Rated power - P2: 0.75 HP
Power (P2) required by pump: 0.75 HP
Main frequency: 60 Hz
Rated voltage: 1 x 115/208-230 V
Service factor: 1.15
Rated current: 8/4,42-4 A
Starting current: 800 %
Full load SF current: 9.2/4 A
Cos phi - power factor: 0.91
Rated speed: 3500 rpm
IE efficiency: 66.0%
Motor efficiency at full load: 66.0 %
Motor efficiency at 3/4 load: 62.0 %
Motor efficiency at 1/2 load: 52.0 %
Number of poles: 2
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Built-in motor protection: PTO
Motor Number: 99882378
Frequency converter: None
Net weight: 62.1 lb
Gross weight: 73.1 lb
Shipping volume: 4.94 ft³
Country of origin: US
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All wetted parts are in stainless steel (EN 1.4301) (AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
