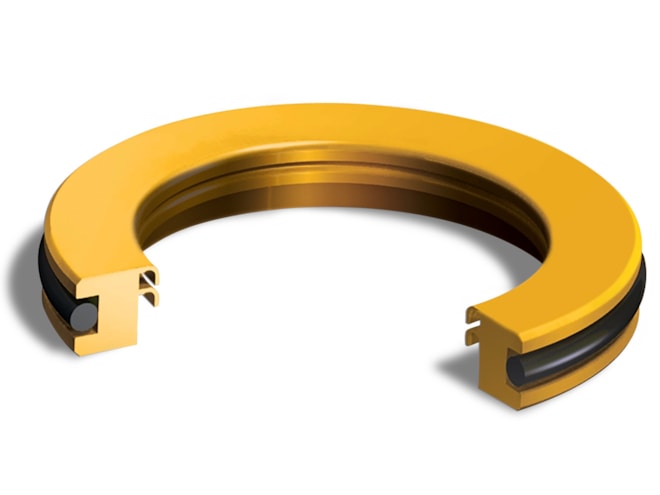

Chesterton 30K Advanced Lip Seal

Chesterton 30K Advanced Lip Seal

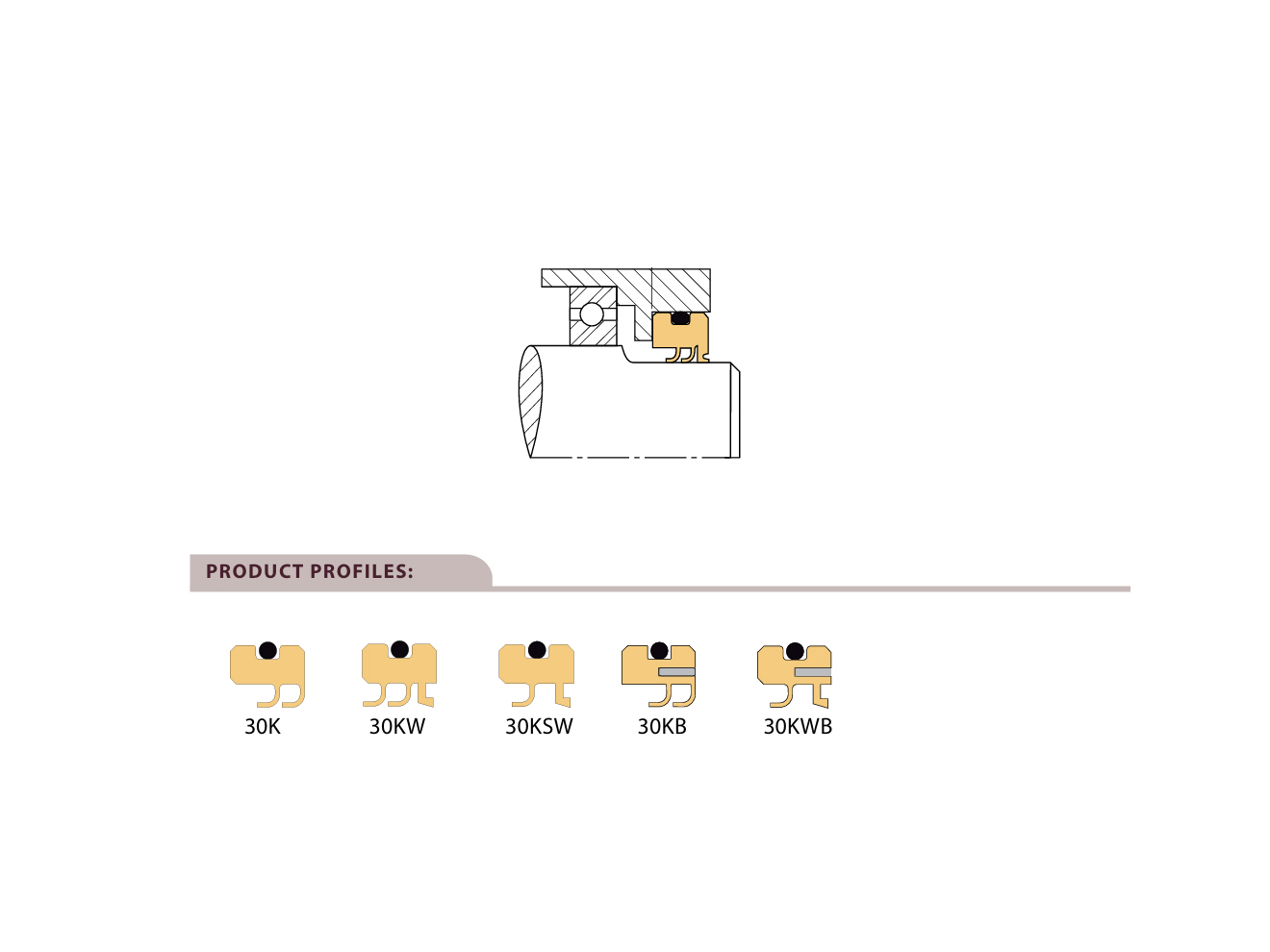

Chesterton 30K Advanced Lip Seal Diagram

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Chesterton
Usually ships in 7-10 business days

Features

-30-400°F ( -35-200°C ) operating temperature
0.07 mpa ( 10 psi )permissible compressive load
20 m/s ( 4000 fpm ) max speed
0.787-23.62in (20-600mm) sizes

Chesterton's 30K Advanced Lip Seal is a high performance solution for rotary seal applications. The seal prevents penetration of external contaminants from entering the housing and is well suited for in bearing and gear box applications that utilize conventional oil lip seals.

The 30K is manufactured individually in a way that eliminates the need for tooling costs associated with new sizes. The 30K is offered in other unique designs based on application requirements whether a built-in wiper is required or space limited.

The unique 30K lip seal design is mechanically formed to provide optimal sealing force and is available in four distinct PTFE materials developed specifically for sealing applications. The PTFE compounds, coupled with the seal design provide excellent fluid compatibility and outstanding performance.
