Walchem IX Series Metering Pump

Name: Walchem IX Series Metering Pump
Price: 2128.0 USD
Availability: BackOrder

Digitally controlled direct-drive diaphragm pumps.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Starting Price: $2,128.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}

Configured Part No. {{ calcPartNumber }}

Quantity

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Specs

Highlights...

By Walchem
FREE Shipping
Usually ships in 3 to 4 weeks

Features

1000:1 turndown ratio
±1% high accuracy
70% energy savings
High compression pump head design
300 L/H down to 7.5mL/H flowrate
Tested by Intertek to UL and CSA standards

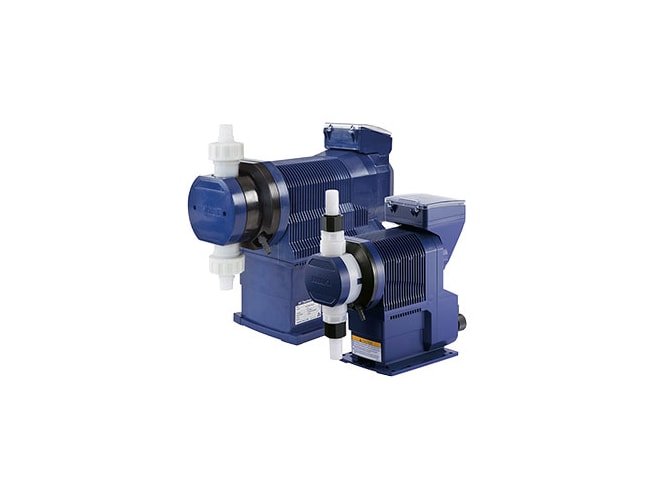

The Walchem IX Series Metering Pump is a digitally controlled direct-drive diaphragm pump. High-end motor technology result in accurate and energy efficient metering pumps with high resolution. The Walchem IX Series meets today's demand for automated chemical delivery in industries from water treatment to chemical process. Precise control offers a solution for a variety of dosing applications. Standard with several control methods, the IX Series pumps provide a solution to a variety of applications all in one pump.

Walchem IX Series pumps use efficient brushless DC motors for speed control. Combined with precise motor control, an efficient valve design maintains accurate flow rates to allow a low-cost, mechanically-driven diaphragm pump to achieve a repeatability of ±1%. Helical gears and return spring reduce power consumption by up to 70% compared to conventional mechanical diaphragm metering pumps. A fixed stroke length and proprietary liquid end design maintains high compression during each stroke, resulting in fast priming and no gas-lock at any flow rate up to full rated pressures.
