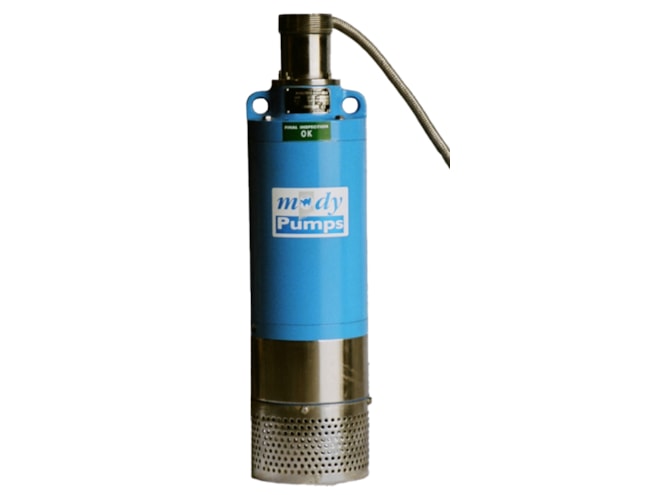

Mody Pumps M150/200/300 Series Electric Submersible Drainage Pump

Portable electric submersible pump for corrosive and abrasive applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $5,488.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Mody Pumps M150/200/300 Series Electric Submersible Drainage Pump Datasheet Mody Pumps M154 Series Electric Submersible Drainage Pump Datasheet
Highlights...

Features

  • 2 to 3 to 5 HP range
  • 1 or 3 phase motor
  • 2in NPT or hose

The Mody Pumps M150/200/300 Series Electric Submersible Drainage Pump is designed for general dewatering applications. It is made of stainless steel for corrosion resistance. The impeller is made of 316 stainless steel  for sea water and corrosive applications or nitride hardened 410 stainless steel for standard applications. The mechanical seals are in a wholly enclosed pressure compensated oil chamber and are made of tungsten carbide. It includes a field adjustable nitrile rubber lined diffuser with optional polyurethane diffusers available.
