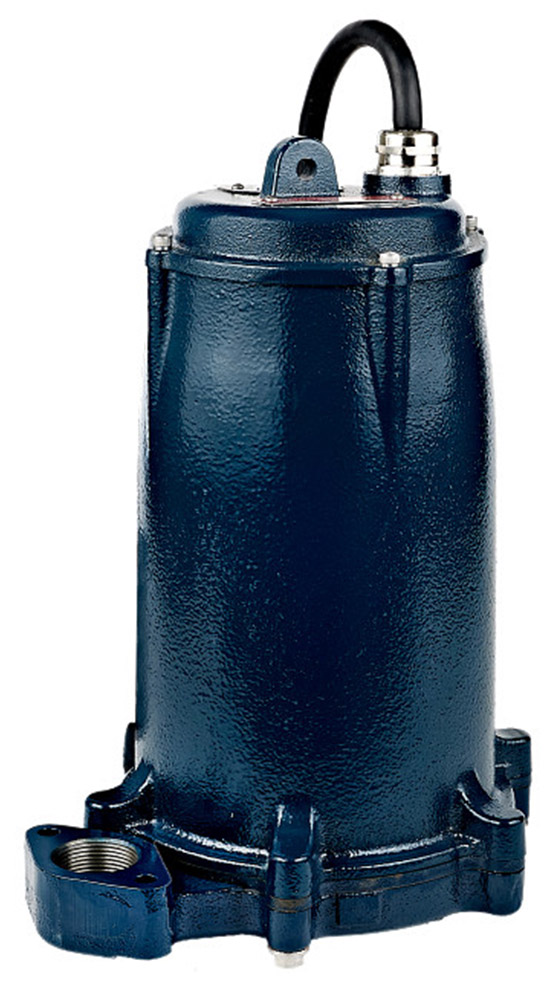

Franklin Electric IGP-M Series Manual Grinder Pump

2 HP, 32 GPM at 20ft head, single or three-phase voltages, continuous duty submersible pump for residential and light commercial sewage waste transfer.

Select your options below…

Single-phase models require a specific control panel or capacitor kit matched to the pump for proper operation and third-party approval. Please contact us for additional information.

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 104°F max fluid temperature
  • Vertical 1-1/4in FNPT discharge port
  • 3450 rpm at 60 Hz
  • Voltages:
    • 230 VAC, Single-phase, 13.9A at full load
    • 230 VAC, Three-phase, 10A at full load
    • 460 VAC, Three-phase, 4.5A at full load
  • Brass seven-vane, angled face, non-clogging vortex impeller
  • Carbon ceramic mechanical seal
  • Stainless Steel motor shaft
  • AISI 440C Rockwell 55-60C rotating and stationary cutter
  • Epoxy-coated finish
  • 15ft or 30ft cable lengths available

Single-phase models require a specific control panel or capacitor kit matched to the pump for proper operation and third-party approval. Please contact us for additional information.


The Franklin Electric IGP-M Series Manual Grinder Pump is the ideal solution for residential and light commercial sewage waste transfer where high head conditions exist. The 2 HP, 3450 rpm motor is designed handle applications ranging from sewage lift stations to low pressure sewer systems used with housing developments, lake communities, or anywhere high vertical lift or long force mains are present.

Manufacturer Stock

Components in stock, please allow 3 to 5 business days for processing.

Part Number Price Available
515864
Show Configuration
$1,896.50 11 in stock
515879
Show Configuration
$2,059.96 4 in stock
515870
Show Configuration
$2,059.96 1 in stock
515871
Show Configuration
$2,059.96 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
