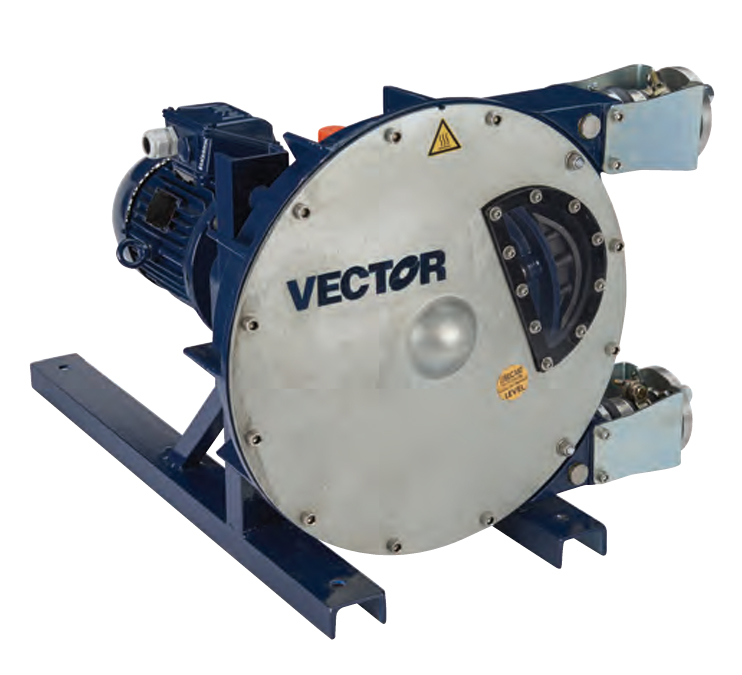

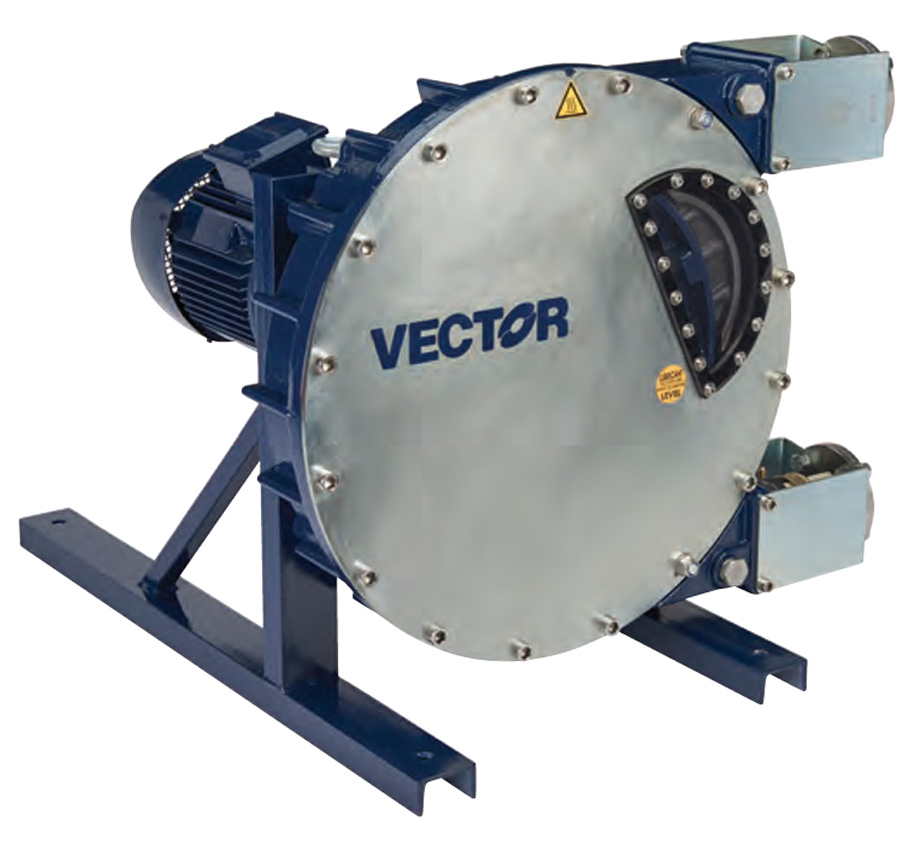

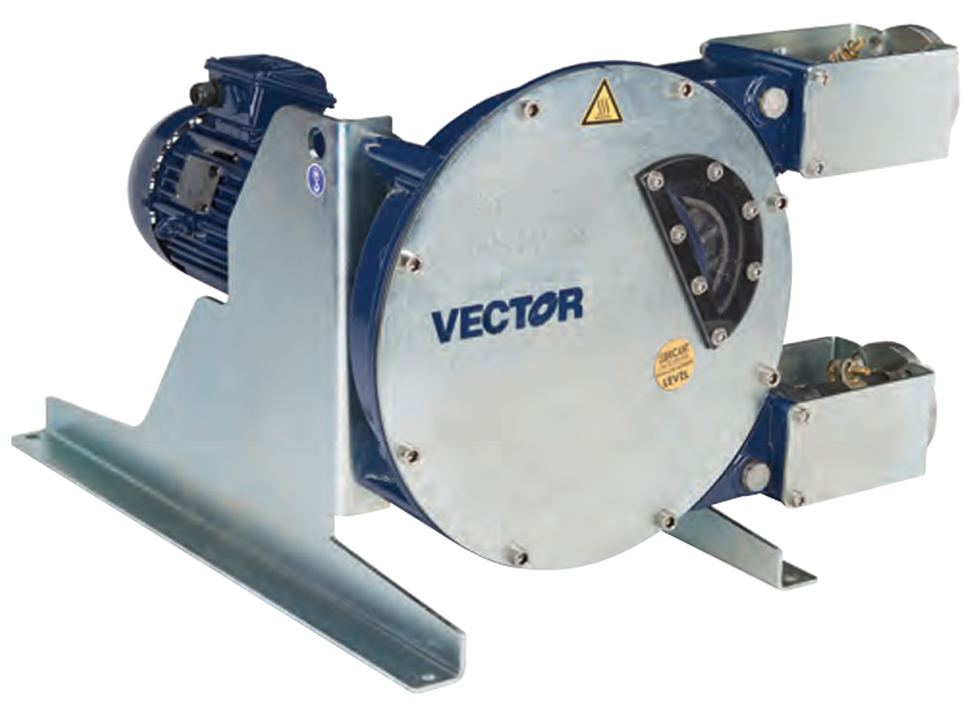

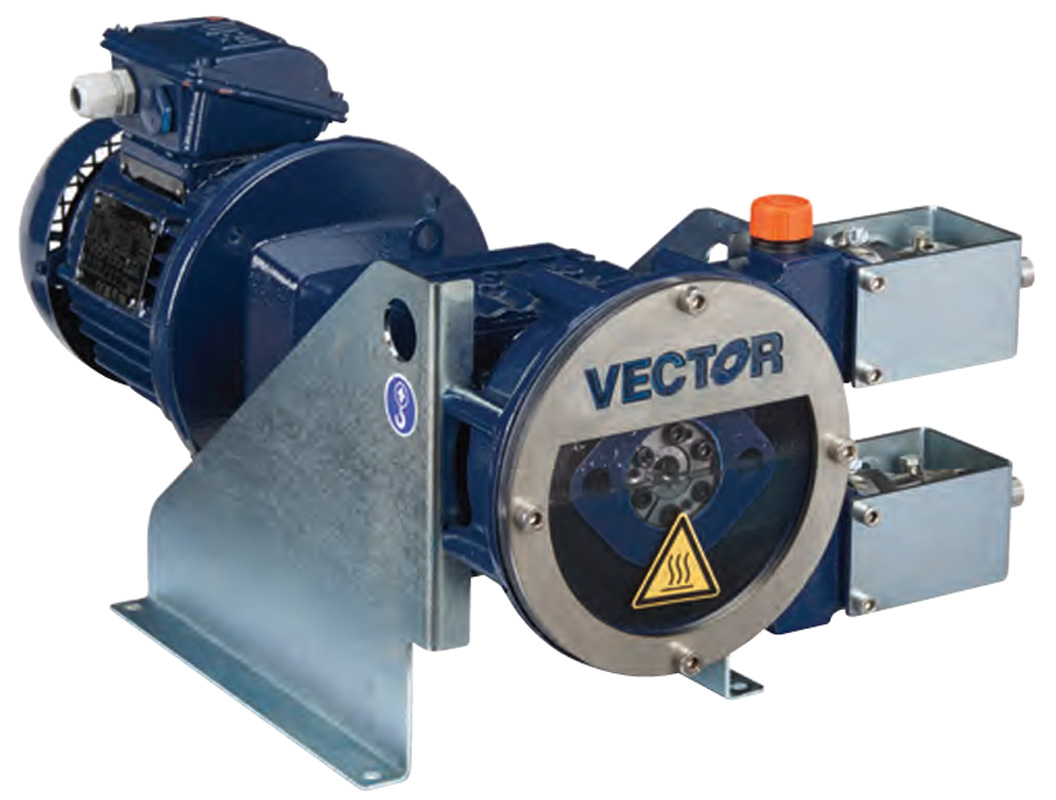

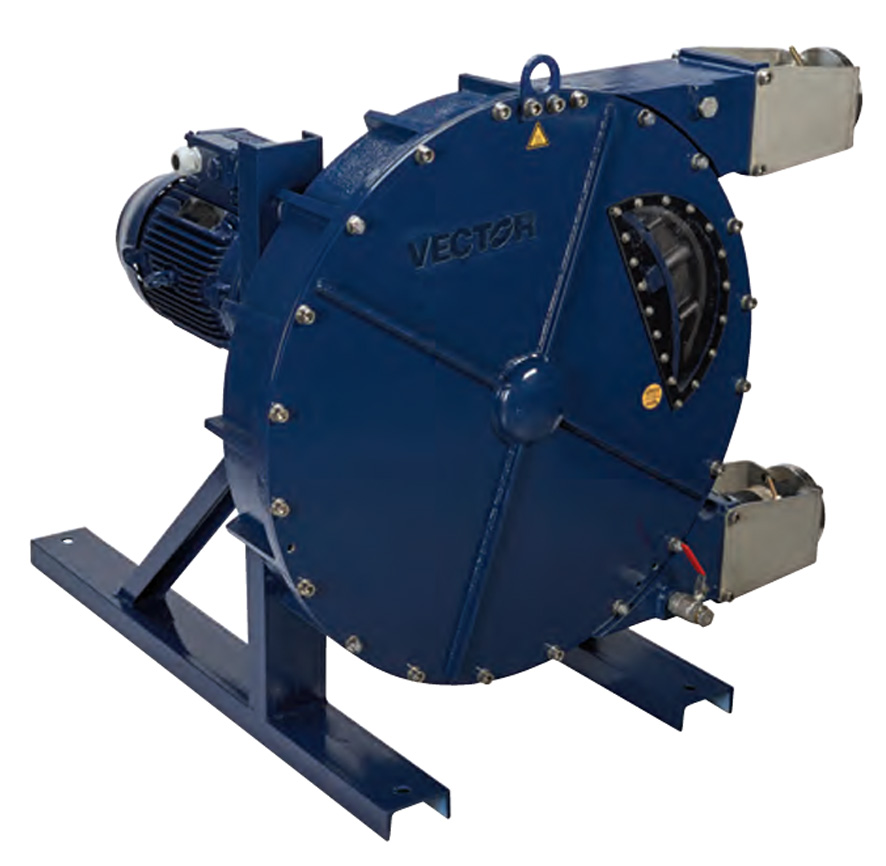

Vector Peristaltic Pumps 4000 Series Vector Peristaltic Pump

Up to 154.1 maximum flow, 100,000 cps max viscosity, 182°F (82°C) max liquid temperature.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,140.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • up 154.1 gpm (583.33 lpm) maximum flow depending on model
  • up to 218 psig (15 bar) maximum discharge pressure depending on model
  • 29.5ft (9m) suction lift
  • 21.8 psig (0.15 bar) maximum suction pressure
  • Up to 25 maximum horsepower depending on model
  • 100,000 cps maximum viscosity
  • 180°F (82°C) maximum liquid temperature

The Vector Peristaltic Pumps 4000 Series Vector Peristaltic Pump is a vector pump for aggressive or corrosive fluids, high-viscosity fluids, and high-purity solutions. It moves high-viscosity (up to 100,000 cps) pasty, pulpy, thick, abrasive, and corrosive solutions as well as fluids containing solids up to 0.476 inches (12.10 mm) in size.

The 400 series comes in 7 different models to handle a wide range of processing requirements, Vector peristaltic pumps are ideal for pumping challenging fluids without altering their composition.
