Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $490.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{ calcAvailability }}



  • Maximum flow rate: 6.1 GPM (23 LPM)
  • Maximum discharge head: 230ft (70m)
  • Springless spool valve type
  • Supply air pressure range: 30 to 100 PSI
  • NPT 3/8in connection size
  • Pump body material options
    • PPG
    • Aluminum (ADC12)
    • Cast stainless steel (SCS14)

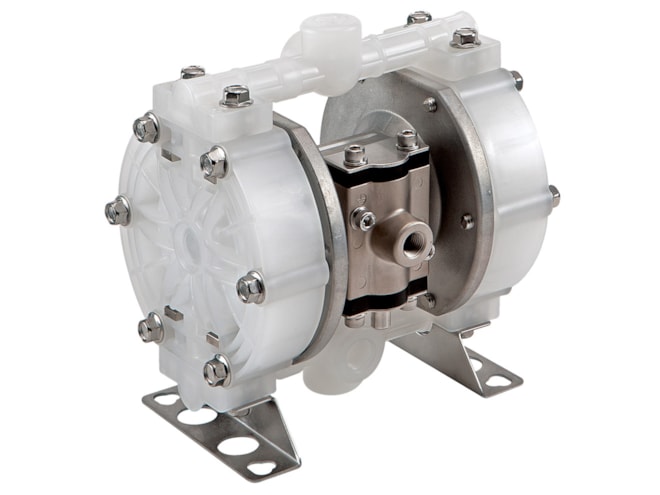

The Iwaki TC-X100/101 series are air operated double diaphragm pump specially designed for extremely low speed fluid transfer. It is also suitable for use in applications that require frequent start/stop and dead head type. These pumps come with a choice of multi port options and selection in metallic or non-metallic body material. It is capable of a maximum discharge head of 230ft and a maximum flow rate of 6.1 GPM, depending on selection. Additional selection for diaphragm materials are available.
