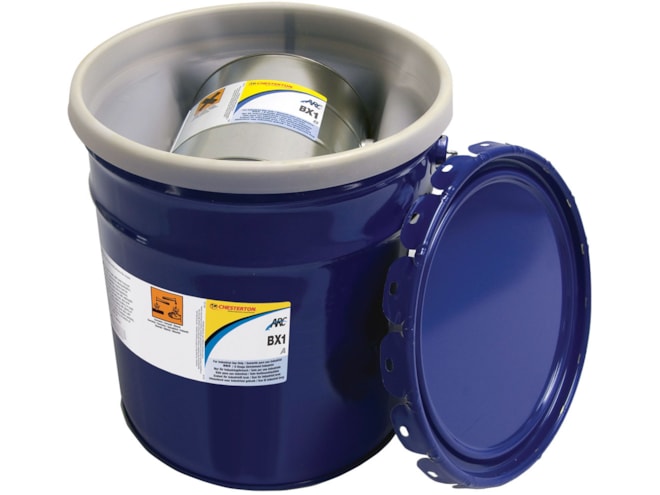

Chesterton ARC BX1 Ceramic Reinforced Modified Epoxy Industrial Coating

Coarse grade with single coat application via trowel for protection against extreme sliding abrasion and chemicals.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $513.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Chesterton ARC BX1 Industrial Coating Application Instructions (English) Chesterton ARC BX1 Industrial Coating Application Instructions (Spanish)
Chesterton ARC BX1 Industrial Coating Datasheet (English) Chesterton ARC BX1 Industrial Coating Datasheet (Spanish)
Highlights...

Features

  • Maximum temperature:
    • 400°F (205°C) dry
    • 205°F (95°C) wet
  • 23.5Mpa tensile adhesion
  • Gray coating color
  • Approximate coverage:
    • 1.5L kit covers 0.25m2 (2.69ft2)
    • 20kg kit covers 1.37m2 (14.7ft2)
  • 100% solids; no VOCs; no free isocyanates
  • Chemically resistant polymer matrix
  • Approved to NSF Std 61 for drinking water
  • Kit includes mixing and application instructions, plus tools

Bulk pricing is available, please contact Pump World for more information.


The Chesterton ARC BX1 Modified Epoxy Industrial Coating uses advanced ceramic reinforced composites to repair and protect metal surfaces exposed to extreme sliding abrasion. The high ceramic loading level extends the equipment life and lowers the coefficient of thermal expansion. The ARC BX1 has a high adhesive strength that resists disbanding and a high build that allows vertical build capability with most substrates.

Application Areas

  • Hoppers/chutes
  • Hydro pulpers
  • Wear plates
  • Screws
  • Slurry pumps
  • Pipe elbows
  • Coal pulverizers
  • Pulverized fuel lines
  • Separators and cyclones
Price per 1-20 units Price per 21-40 units Price per 41-60 units Price per 61+ units
1.5L Kit $290 $275 $262 $246
Price per 1-10 units Price per 11-20 units Price per 21-30 units Price per 31+ units
20kg Kit $823 $782 $740 $700
20kg Kit (Pallet) $7,974 $7,574 $7,176 $6,777

Manufacturer Stock

ships in 5-7 business days

Part Number Price Available
086490
Show Configuration
$513.00 63 in stock
085593
Show Configuration
$301.00 6 in stock
086959
Show Configuration
$9,928.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
